Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

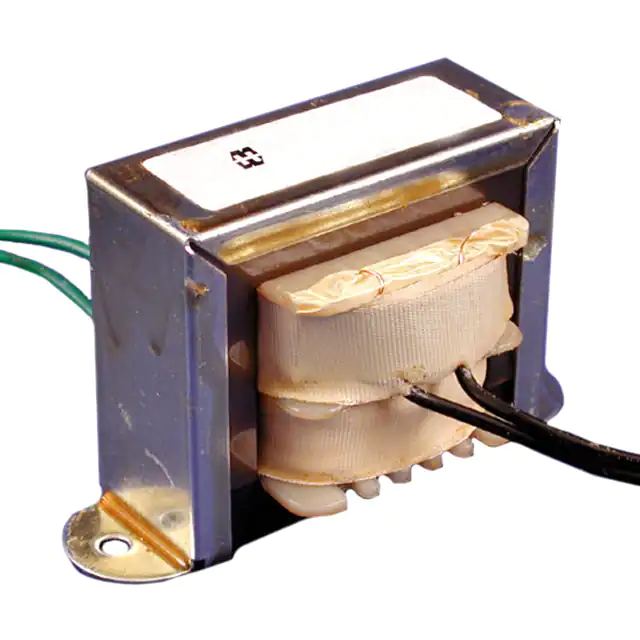

166F12DPWR XFMR LAMINATED 4.2VA CHAS MT |
4,119 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 117V | 12V | 350mA | Single | Single | Yes | 4.2VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
|
185C20PWR XFMR LAMINATED 25VA CHAS MT |
3,445 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
166F14PWR XFMR LAMINATED 3.5VA CHAS MT |
4,824 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 14V | 250mA | Single | Single | Yes | 3.5VA | Chassis Mount | Wire Leads | 60.45mm L x 34.29mm W | 36.32mm | 2000Vrms | 0.4 lb (181.44 g) |
|
164H120PWR XFMR LAMINATED 20VA TH |
2,601 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 320mA, Series 160mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
|
164H10PWR XFMR LAMINATED 20VA TH |
1,875 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
|
185C12PWR XFMR LAMINATED 25VA CHAS MT |
1,322 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
185C16PWR XFMR LAMINATED 25VA CHAS MT |
4,593 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
166L10PWR XFMR LAMINATED 20VA CHAS MT |
2,189 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 10V | 2A | Single | Single | Yes | 20VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1.2 lbs (544.3 g) |
|
186C24PWR XFMR LAMINATED 12VA CHAS MT |
4,429 | - |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 24V | 500mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms | 0.67 lb (303.91 g) |
|
|
187E16PWR XFMR LAMINATED 56VA CHAS MT |
3,131 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
