Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
266S24PWR XFMR LAMINATED 240VA CHAS MT |
3,777 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 20A, Series 10A | Dual | Dual | No | 240VA | Chassis Mount | Wire Leads | 87.38mm L x 91.44mm W | 109.22mm | 2000Vrms | 8.6 lbs (3.9 kg) |
|
290GXPWR XFMR LAMINATED CHAS MT |
2,869 | - |
|
Datasheet | 290 | Box | Active | Laminated Core | 120V, 220V, 240V | 690V, 6.3V | 150mA, 5A | Single, Multiple Taps | Dual | Yes | - | Chassis Mount | Wire Leads | 95.25mm L x 107.95mm W | 116.84mm | - | 8.7 lbs (3.9 kg) |
|
1182Q117PWR XFMR TOROIDAL 750VA CHAS MT |
4,630 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 6.42A, Series 3.21A | Dual | Dual | No | 750VA | Chassis Mount | Wire Leads | 152.40mm Dia | 73.15mm | 4000Vrms | 13 lbs (5.9 kg) |
|

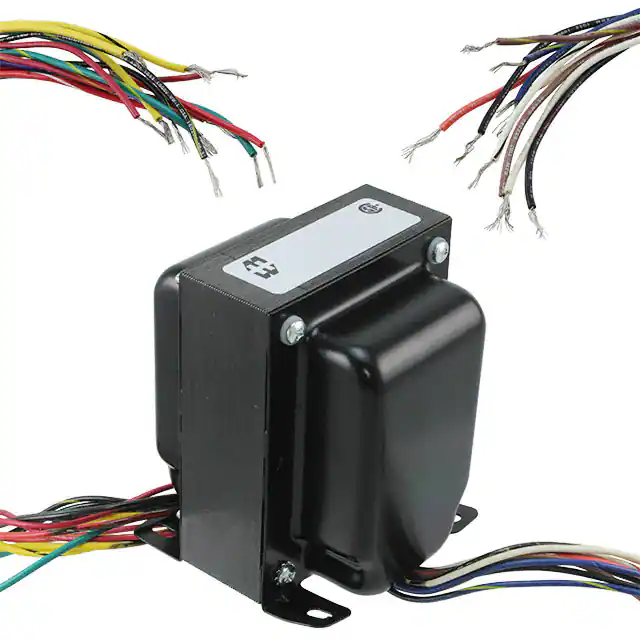

302AXPWR XFMR LAMINATED 198VA CHAS MT |
1,965 | - |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V, 2.5V, 2.5V | 230mA, 6A, 3A, 2.5A, 2.5A | Dual, Multiple Taps | Five | Yes | 198VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 115.82mm | 2000Vrms | 8.5 lbs (3.9 kg) |
|
|
1182U110PPWR XFMR TOROIDAL 1500VA CHAS MT |
1,547 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 13.6A, Series 6.8A | Dual | Dual | No | 1500VA | Chassis Mount | Wire Leads | 187.96mm Dia | 82.55mm | 4000Vrms | 24 lbs (10.9 kg) |
|
373HXPWR XFMR LAMINATED 369VA CHAS MT |
1,850 | - |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 700V, 6.3V, 5V | 403mA, 9A, 6A | Dual, Multiple Taps | Four | Yes | 369VA | Chassis Mount | Wire Leads | 142.14mm L x 111.13mm W | 134.62mm | 2000Vrms | 18 lbs (8.2 kg) |
|
161D56PWR XFMR LAMINATED 1VA TH |
1,104 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 30mA, Series 15mA | Single | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
160E20PWR XFMR LAMINATED 1.2VA TH |
4,460 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 120mA, Series 60mA | Dual | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
164E28PWR XFMR LAMINATED 2.4VA TH |
4,803 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.18mm | 2500Vrms | 0.25 lb (113.4 g) |
|
183E24PWR XFMR LAMINATED 2.5VA TH |
2,880 | - |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 36.50mm W | 28.58mm | 4000Vrms | 0.17 lb (77.11 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
