Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164J120PWR XFMR LAMINATED 36VA TH |
3,882 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J36PWR XFMR LAMINATED 36VA TH |
4,173 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J24PWR XFMR LAMINATED 36VA TH |
1,232 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
PWDI13161PWR XFMR CHAS MT |
2,405 | - |
|
Datasheet | PWDAHL | Box | Active | - | 600V | - | 120mA | Single | - | - | - | Chassis Mount | Wire Leads | 73.03mm L x 46.23mm W | 2.370" (60.20mm) | - | - |
|

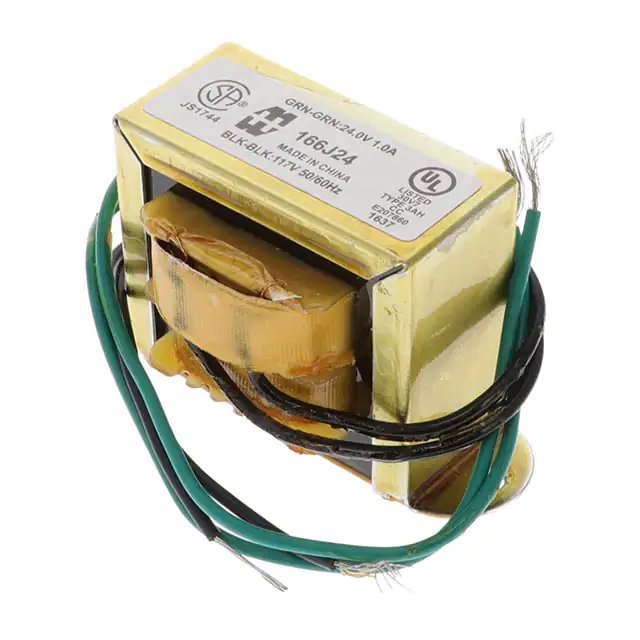

166J24PWR XFMR LAMINATED 24VA CHAS MT |
4,399 | - |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 24V | 1A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|
166M2PWR XFMR LAMINATED 7.5VA CHAS MT |
1,625 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266K18PWR XFMR LAMINATED 27VA CHAS MT |
3,763 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 9V, Series 18V | Parallel 3A, Series 1.5A | Dual | Dual | No | 27VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266J24PWR XFMR LAMINATED 24VA CHAS MT |
4,642 | - |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.80mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
187E24PWR XFMR LAMINATED 57.6VA CHAS |
2,515 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 57.6VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
162J36PWR XFMR LAMINATED 36VA TH |
4,619 | - |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
