Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182M22PWR XFMR TOROIDAL 120VA CHAS MT |
2,821 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 22V, Series 44V | Parallel 5.46A, Series 2.73A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182P12PWR XFMR TOROIDAL 120VA CHAS MT |
1,041 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 12V, Series 24V | Parallel 10A, Series 5A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|

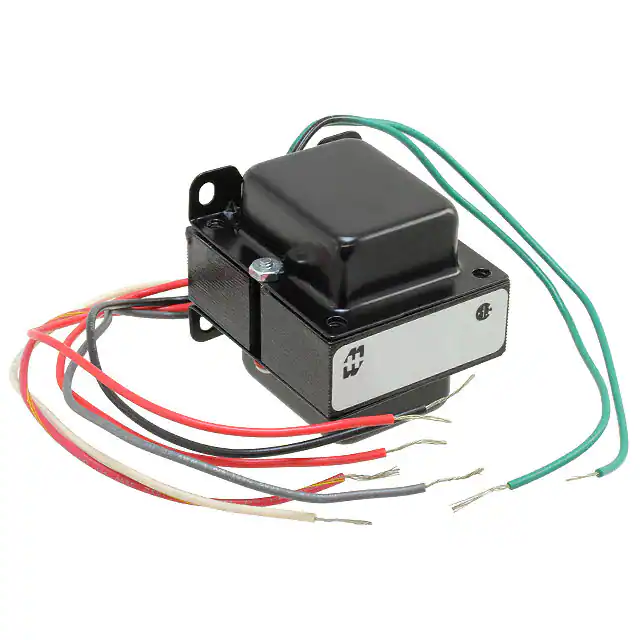

269AXPWR XFMR LAMINATED 40VA CHAS MT |
1,346 | - |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 250V, 6.3V | 115mA, 2A | Single | Dual | Yes | 40VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
266S6PWR XFMR LAMINATED 63VA CHAS MT |
3,071 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 20A, Series 10A | Dual | Dual | No | 63VA | Chassis Mount | Wire Leads | 101.60mm L x 62.74mm W | 66.55mm | 2000Vrms | 2.6 lbs (1.2 kg) |
|
|
266M25PWR XFMR LAMINATED 75VA CHAS MT |
2,599 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12.5V, Series 25V | Parallel 6A, Series 3A | Dual | Dual | No | 75VA | Chassis Mount | Wire Leads | 114.30mm L x 63.50mm W | 73.66mm | 2000Vrms | 3.3 lbs (1.5 kg) |
|
|
1182K117PWR XFMR TOROIDAL 160VA CHAS MT |
2,964 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 1.368A, Series 684mA | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms | 3.8 lbs (1.7 kg) |
|
|
1182M30PWR XFMR TOROIDAL 160VA CHAS MT |
1,119 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 5.34A, Series 2.67A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms | 3.8 lbs (1.7 kg) |
|
270BXPWR XFMR LAMINATED 53VA CHAS MT |
4,804 | - |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 57.5mA, 2A, 2A | Single | Triple | Yes | 53VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
|

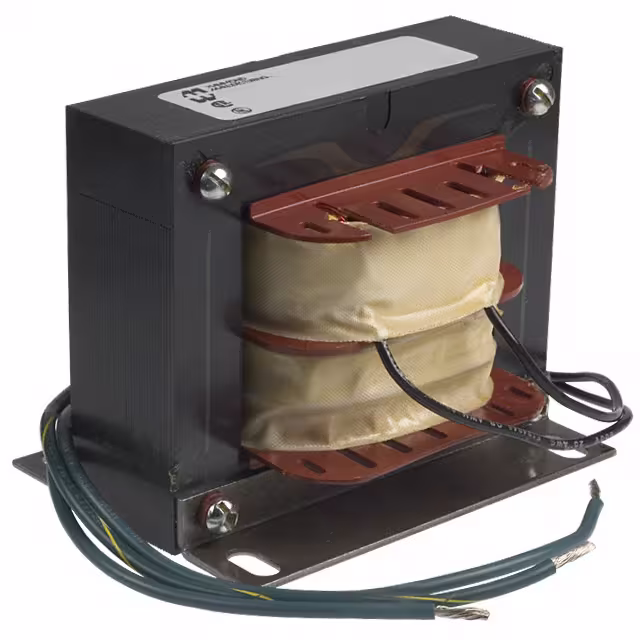

165Z3PWR XFMR LAMINATED 150VA CHAS MT |
3,668 | - |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 3V | 50A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 95.25mm L x 88.90mm W | 79.50mm | 2000Vrms | 6 lbs (2.7 kg) |
|
|
270DXPWR XFMR LAMINATED 83VA CHAS MT |
3,662 | - |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 104mA, 3A, 2A | Single | Triple | Yes | 83VA | Chassis Mount | Wire Leads | 63.50mm L x 76.20mm W | 77.72mm | 2000Vrms | 3.1 lbs (1.4 kg) |
