Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
266LA12PWR XFMR LAMINATED 24VA CHAS MT |
2,056 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266M2PWR XFMR LAMINATED 7.5VA CHAS MT |
3,991 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 1.25V, Series 2.5V | Parallel 6A, Series 3A | Dual | Dual | No | 7.5VA | Chassis Mount | Wire Leads | 71.63mm L x 42.93mm W | 42.93mm | 2000Vrms | 0.6 lb (272.16 g) |
|
|
266L12BPWR XFMR LAMINATED 25.2VA CHAS |
4,787 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25.2VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
167L28PWR XFMR LAMINATED 56VA CHAS MT |
2,964 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
229D24PWR XFMR SEMI-TORO 48VA TH |
3,461 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
|
229D20PWR XFMR SEMI-TORO 48VA TH |
4,209 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.6 lbs (725.7 g) |
|

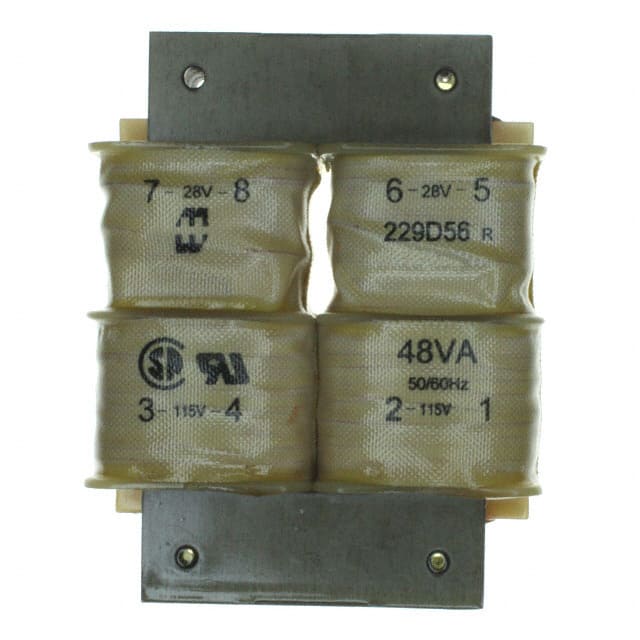

229D56PWR XFMR SEMI-TORO 48VA TH |
3,410 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.4 lbs (635 g) |
|
|
266GB6PWR XFMR LAMINATED 3.78VA CHAS |
3,681 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms | 0.55 lb (249.48 g) |
|
187F24PWR XFMR LAMINATED 96VA CHAS MT |
1,516 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|

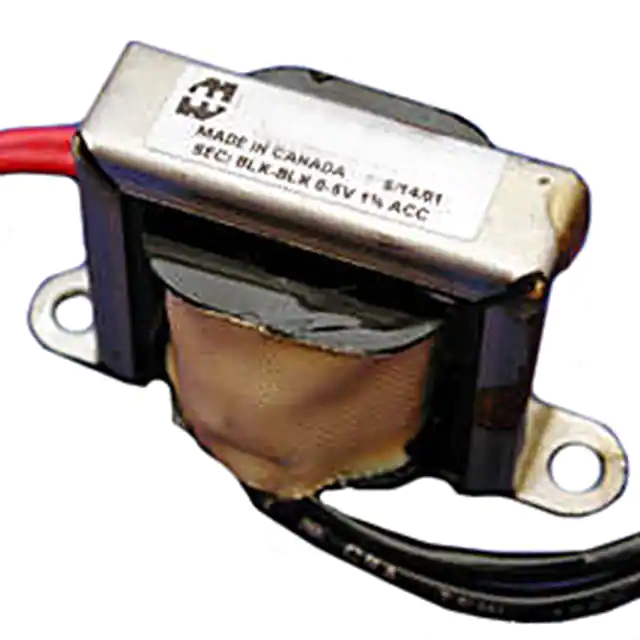

PT120CFPWR XFMR LAMINATED CHAS MT |
1,670 | - |
|
Datasheet | PT | Box | Active | Laminated Core | 120V | - | - | Single | Single | No | - | Chassis Mount | Wire Leads | 52.40mm L x 27.94mm W | 31.75mm | 4000Vrms | - |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
