Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166F28PWR XFMR LAMINATED 7VA CHAS MT |
4,749 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 28V | 250mA | Single | Single | Yes | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266LA25PWR XFMR LAMINATED 50.4VA CHAS |
3,792 | - |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 115V, 230V | 25.2V | 2A | Dual | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2.2 lbs (997.9 g) |
|
183J28PWR XFMR LAMINATED 30VA TH |
4,688 | - |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
PWDI13158PWR XFMR CHAS MT |
2,389 | - |
|
Datasheet | PWDAHL | Box | Active | - | 600V | - | 80mA | Single | - | - | - | Chassis Mount | Wire Leads | 60.33mm L x 40.64mm W | 1.995" (50.67mm) | - | - |
|

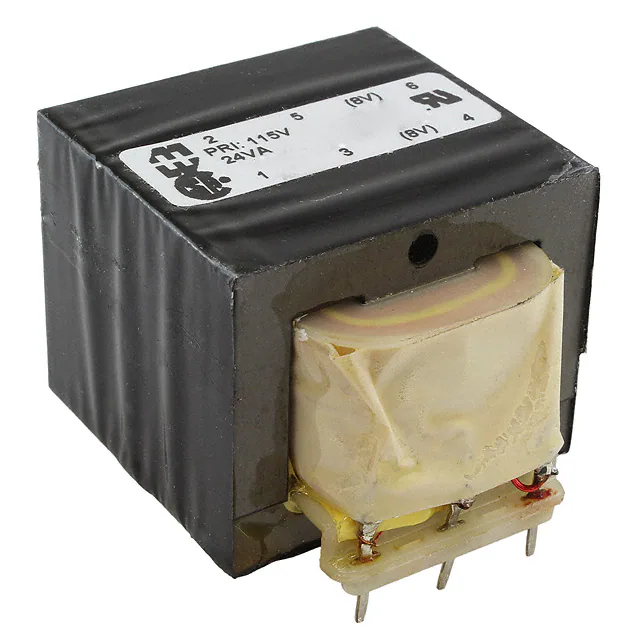

161H16PWR XFMR LAMINATED 24VA TH |
4,387 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.81 lb (367.41 g) |
|
185E12PWR XFMR LAMINATED 80VA CHAS MT |
1,728 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms | 2.5 lbs (1.1 kg) |
|
164J12PWR XFMR LAMINATED 36VA TH |
3,799 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
160H28PWR XFMR LAMINATED 24VA TH |
3,931 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.78 lb (353.8 g) |
|
|
164J56PWR XFMR LAMINATED 36VA TH |
3,259 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
262B24PWR XFMR LAMINATED 7VA CHAS MT |
2,689 | - |
|
Datasheet | 262 | Bulk | Active | Laminated Core | 115V | 120V, 12/12V | 27mA, 200mA/200mA | Single | Triple | No | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.67mm | - | 0.6 lb (272.16 g) |
