Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
241-8-56LPWR XFMR LAMINATED 100VA CHAS MT |
4,967 | - |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
IF-24-230PWR XFMR SEMI-TORO 24VA TH |
2,496 | - |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 210mA, Series 105mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 68.00mm L x 57.50mm W | 31.30mm | 4000Vrms | 1.03 lbs (467.2 g) |
|
DP-241-8-10LPWR XFMR LAMINATED 100VA CHAS MT |
2,559 | - |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
A41-80-512PWR XFMR LAMINATED 80VA CHAS MT |
4,995 | - |
|
Datasheet | All-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 12V | Parallel 3.5A, Series 600mA | Dual | Dual | Yes | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
DMT-8-15PWR XFMR LAMINATED 8VA CHAS MT |
2,519 | - |
|
Datasheet | DMT | Bulk | Active | Laminated Core | 115V, 230V | 5V, 15V | 4A, 500mA | Dual | Dual | Yes | 8VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
24-1PWR XFMR LAMINATED 24VA CHAS MT |
1,709 | - |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 24VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 63.50mm W | 63.50mm | 1500Vrms | 2.3 lbs (1 kg) |
|
A41-175-16PWR XFMR LAMINATED 175VA CHAS MT |
1,912 | - |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
-Series.jpg "A41-175-230L")
|
A41-175-230LPWR XFMR LAMINATED 175VA CHAS MT |
1,961 | - |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
A41-175-12PWR XFMR LAMINATED 175VA CHAS MT |
4,754 | - |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

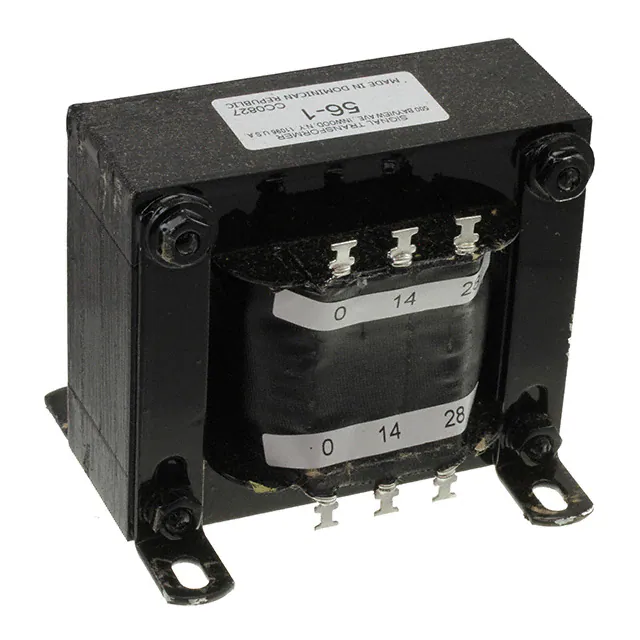

56-1PWR XFMR LAMINATED 56VA CHAS MT |
4,888 | - |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 28V, Series 56V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 73.00mm W | 71.40mm | 1500Vrms | 3.5 lbs (1.6 kg) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
