Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL5.0-24-130BPWR XFMR LAMINATED 5VA TH |
0 |
1+：$9.44000 10+：$8.52000 25+：$8.17320 54+：$7.89111 108+：$7.64417 270+：$7.32819 540+：$7.09676 1026+：$6.88832 |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 420mA, Series 210mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|
|
PL5.0-10-130BPWR XFMR LAMINATED 5VA TH |
4,951 |
1+：$10.26000 10+：$9.25700 25+：$8.88040 54+：$8.57370 108+：$8.30546 270+：$7.96193 540+：$7.71046 1026+：$7.48393 |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1A, Series 500mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|
3FS-424PWR XFMR LAMINATED 6VA TH |
2,041 |
1+：$9.58000 10+：$8.64400 25+：$8.29240 50+：$8.03440 100+：$7.78320 250+：$7.46152 500+：$7.22598 1000+：$6.99705 |
|
Datasheet | 3FS-4xx | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms | - |
|
3FD-416PWR XFMR LAMINATED 6VA TH |
291 |
1+：$9.98000 10+：$8.99900 25+：$8.63280 50+：$8.36380 100+：$8.10210 250+：$7.76700 500+：$7.52172 1000+：$7.28332 |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 38.00mm | 2500Vrms | - |
|
|
3FD-424PWR XFMR LAMINATED 6VA TH |
854 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 38.00mm | 2500Vrms | - |
|
3FD-436PWR XFMR LAMINATED 6VA TH |
367 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms | - |
|

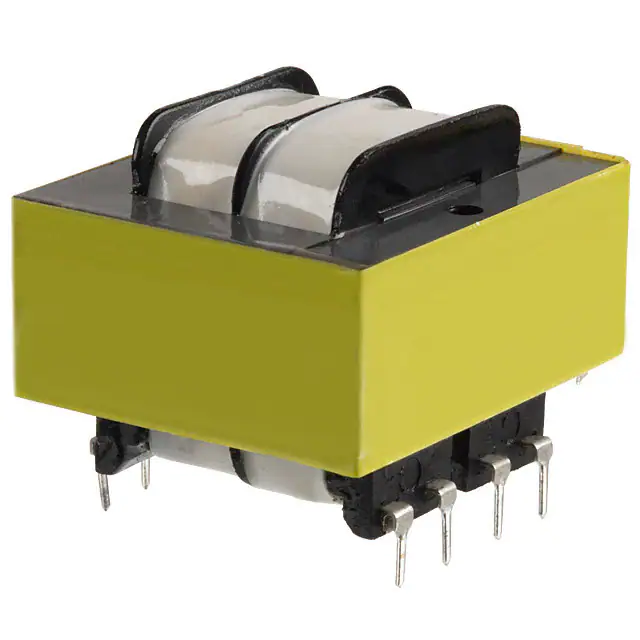

3FD-524PWR XFMR LAMINATED 12VA TH |
38 |
1+：$13.41000 10+：$12.09400 25+：$11.59880 50+：$11.23640 100+：$10.88350 250+：$10.43204 500+：$10.10160 1000+：$9.78059 |
|
Datasheet | 3FD-5xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
3FS-216PWR XFMR LAMINATED 1.1VA TH |
462 |
1+：$5.27000 10+：$4.76400 25+：$4.57200 80+：$4.33775 160+：$4.20300 320+：$4.07178 560+：$3.96841 1040+：$3.85675 |
|
Datasheet | 3FS-2xx | Tube | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
3FS-312PWR XFMR LAMINATED 2.4VA TH |
566 | - |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
|
3FS-316PWR XFMR LAMINATED 2.4VA TH |
500 | - |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
