Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

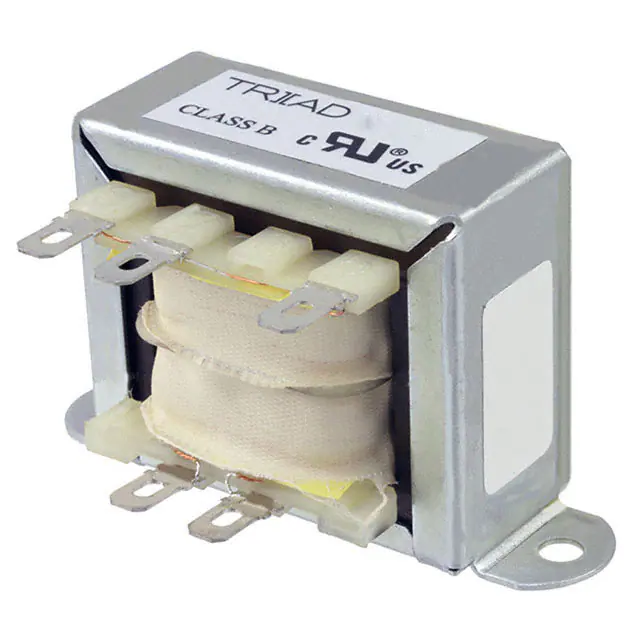

F5-120PWR XFMR LAMINATED 12VA CHAS MT |
3,907 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 120V | 100mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

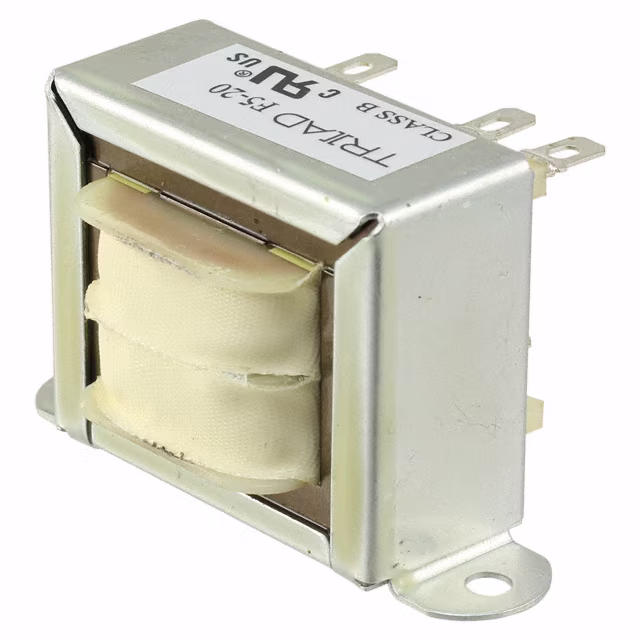

F5-20PWR XFMR LAMINATED 12VA CHAS MT |
4,338 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 20V | 600mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

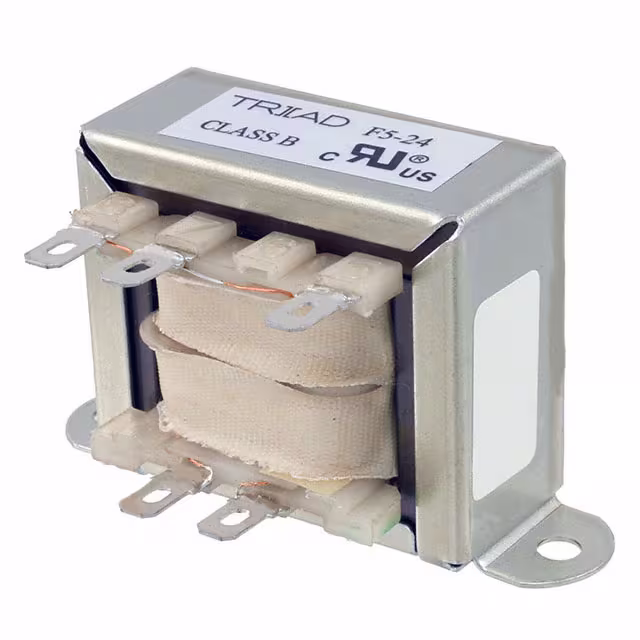

F5-24PWR XFMR LAMINATED 12VA CHAS MT |
4,970 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 500mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-28PWR XFMR LAMINATED 12VA CHAS MT |
2,837 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 28V | 420mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F5-36PWR XFMR LAMINATED 12VA CHAS MT |
2,273 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 36V | 350mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-48PWR XFMR LAMINATED 12VA CHAS MT |
1,858 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 48V | 250mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-56PWR XFMR LAMINATED 12VA CHAS MT |
1,470 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 56V | 220mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-166XPPWR XFMR LAMINATED 7.5VA TH |
1,012 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 9V, Series 24V | Parallel 500mA, Series 125mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-169XPPWR XFMR LAMINATED 7.5VA TH |
4,660 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 287mA, Series 100mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-349XPPWR XFMR LAMINATED 4.5VA TH |
2,117 | - |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 560mA, Series 280mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
