Power Transformers

Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Voltage - Primary	Voltage - Secondary (Full Load)	Current - Output (Max)	Primary Winding(s)	Secondary Winding(s)	Center Tap	Power - Max	Mounting Type	Termination Style	Size / Dimension	Height - Seated (Max)	Voltage - Isolation	Weight

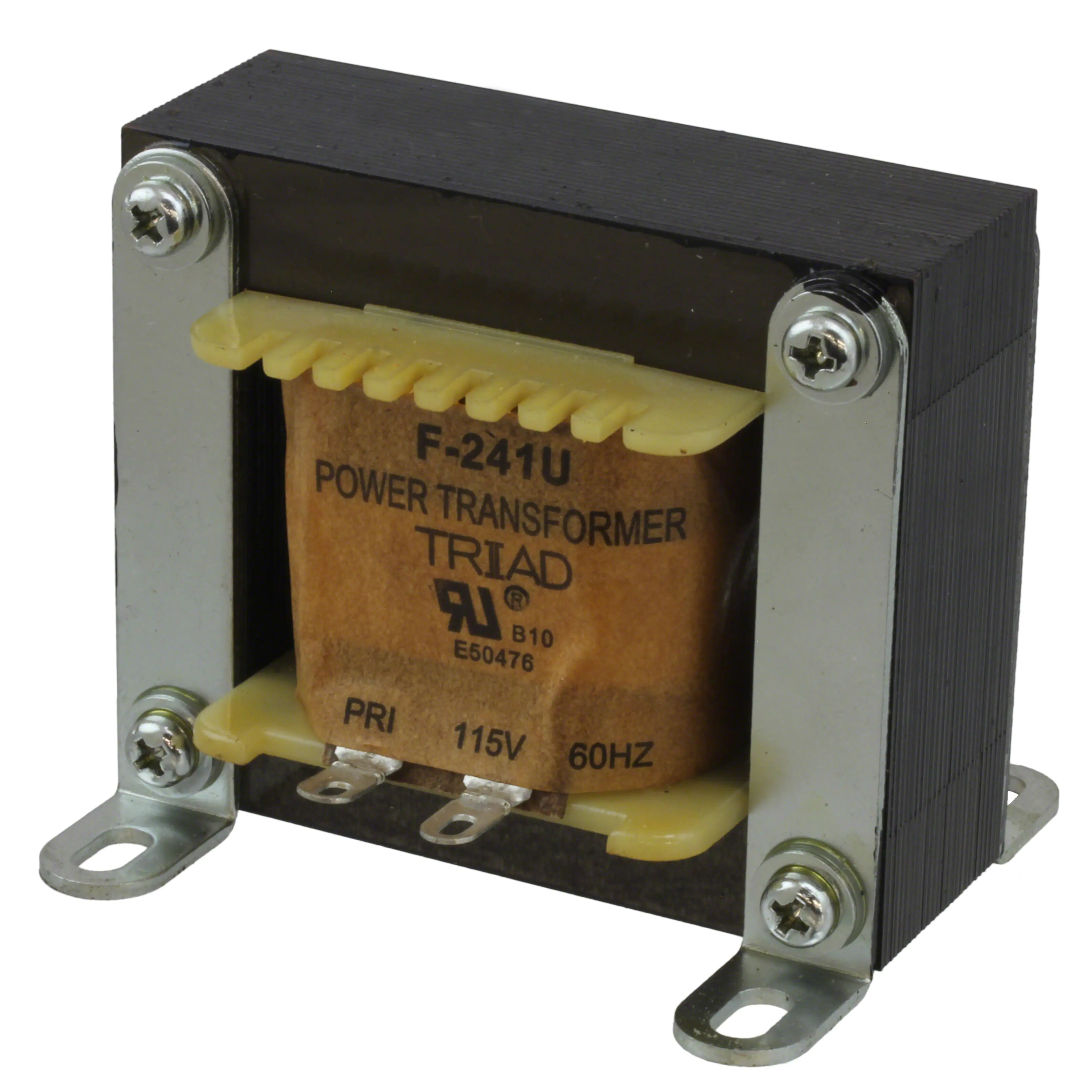

F-241U PWR XFMR LAMINATED 36VA CHAS MT Triad Magnetics	1,530	-	RFQ	Datasheet	Multiple Secondary	Box	Active	Laminated Core	115V	18V	1A	Single	Dual	Yes	36VA	Chassis Mount	Solder Lug	76.20mm L x 63.50mm W	63.50mm	1500Vrms	2.2 lbs (997.9 g)
F-91X PWR XFMR LAMINATED VARIES CHAS Triad Magnetics	2,088	-	RFQ	Datasheet	Universal	Box	Active	Laminated Core	115V	40V, 20V, 10V	300mA	Single, Multiple Taps	Single	Yes	Varies	Chassis Mount	Wire Leads	93.65mm L x 50.80mm W	57.94mm	1500Vrms	1.5 lbs (680.4 g)
F-12X PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	4,987	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	5V	8A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	2500Vrms	2.5 lbs (1.1 kg)

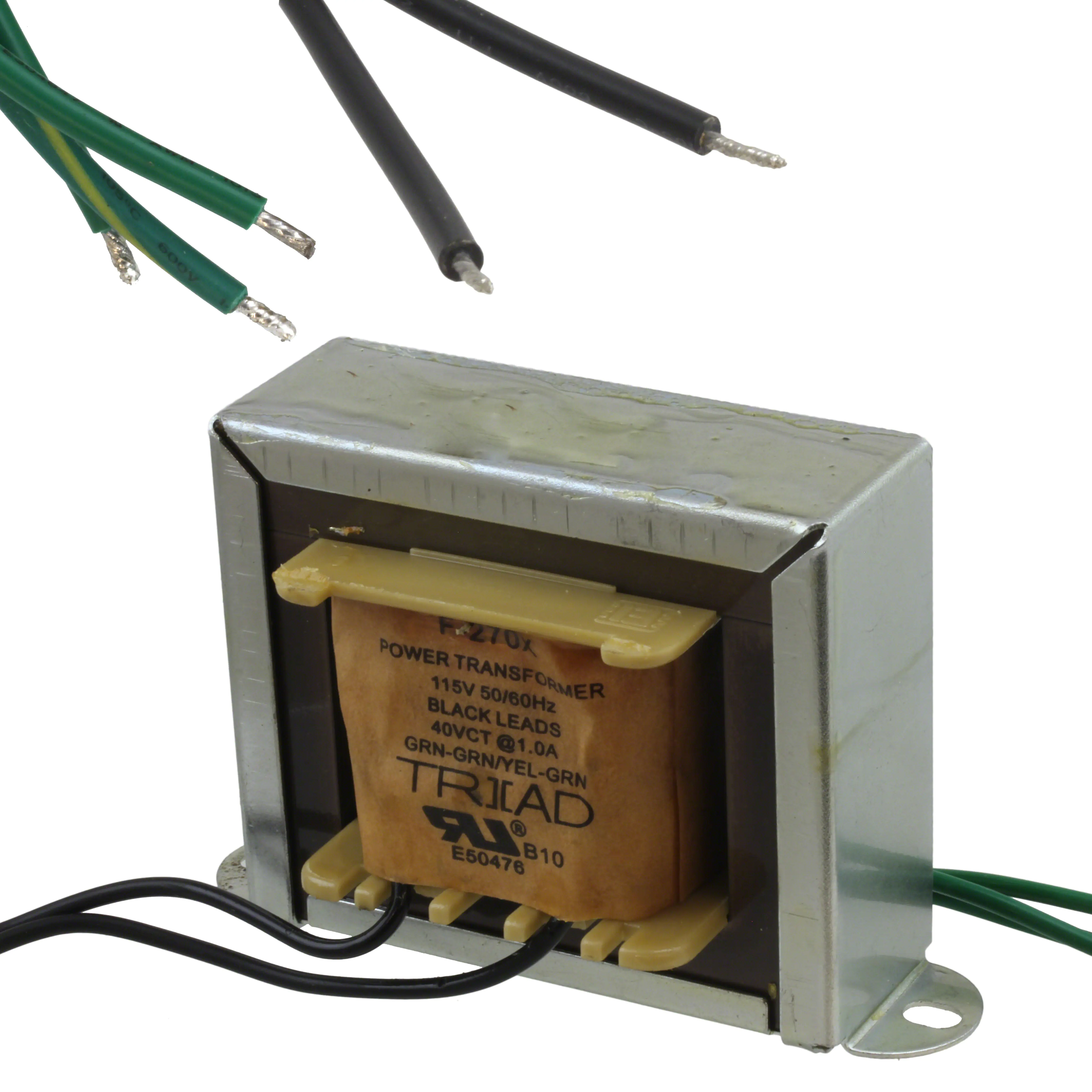

F-270X PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	1,387	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	40V	1A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.07mm	1500Vrms	2.6 lbs (1.2 kg)

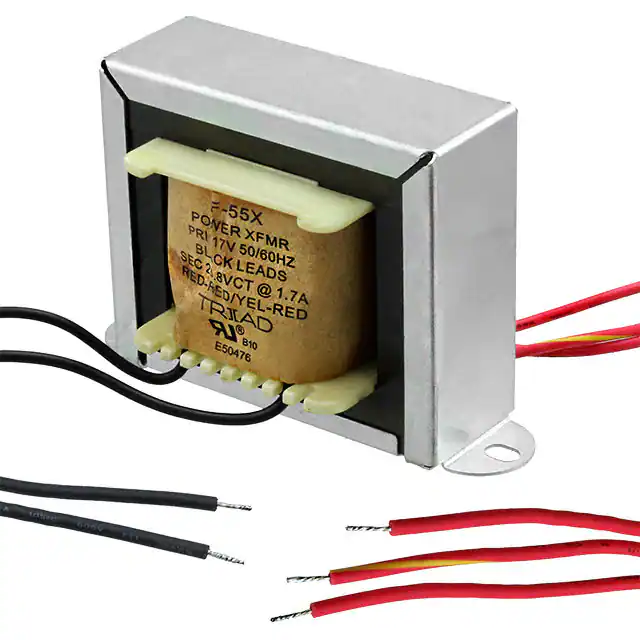

F-55X PWR XFMR LAMINATED 45.6VA CHAS Triad Magnetics	2,975	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	26.8V	1.7A	Single	Single	Yes	45.6VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms	2.3 lbs (1 kg)
F-225X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	1,712	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	12.6V	4A	Single	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 52.37mm W	66.68mm	1500Vrms	2.3 lbs (1 kg)
F-318X PWR XFMR LAMINATED 37.8VA CHAS Triad Magnetics	4,303	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V, 230V	6.3V	6A	Dual	Single	Yes	37.8VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	57.94mm	1500Vrms	2.3 lbs (1 kg)
F-341X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	1,961	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V, 230V	25.2V	2A	Dual	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms	2.2 lbs (997.9 g)
F-252U PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	1,888	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	14V	4A	Single	Single	Yes	56VA	Chassis Mount	Wire Leads	63.50mm L x 61.90mm W	76.20mm	1500Vrms	3 lbs (1.4 kg)
F-279U PWR XFMR LAMINATED 60VA CHAS MT Triad Magnetics	4,223	-	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	60V	1A	Single	Single	Yes	60VA	Chassis Mount	Wire Leads	66.68mm L x 63.50mm W	76.20mm	1500Vrms	3.4 lbs (1.5 kg)

Power Transformers FAQ

How can I narrow the current Power Transformers selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete Power Transformers parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
