Pressure Sensors, Transducers
Browse available Pressure Sensors, Transducers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

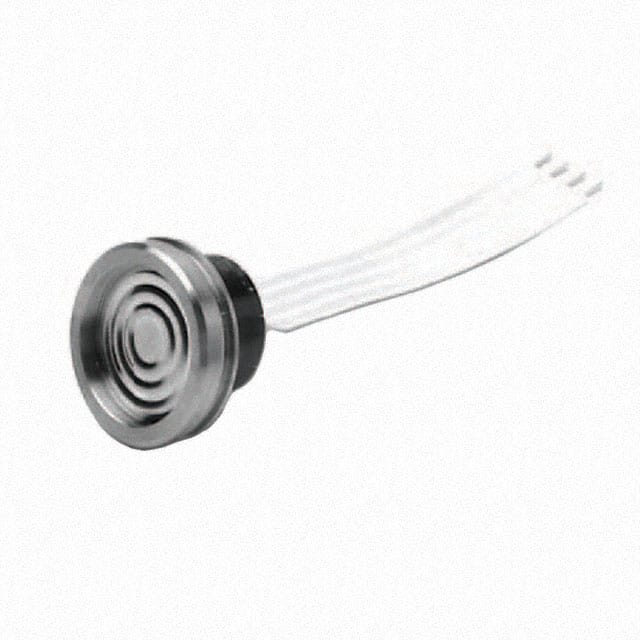

NPI-15A-353SHSENSOR 5076.32PSIS .2V |
3,932 | - |
|
Datasheet | NPI-15 | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 5076.32PSI (35000kPa) | Wheatstone Bridge | 0 mV ~ 200 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 10152.64PSI (70000kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-005G-CSENSOR 5PSIG 0.1V |
3,057 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|

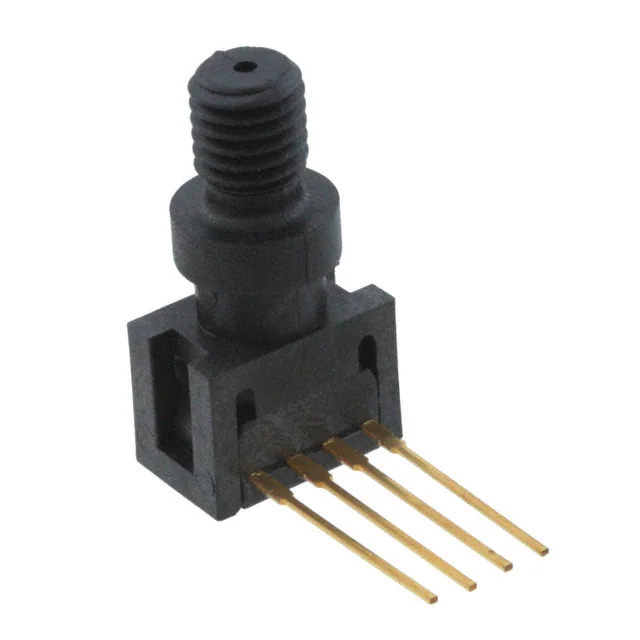

26PCFFM6GSENSOR 100PSIC 1/4" 0.1V |
342 | - |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
RSCDRRM020NDSE3SENSOR 0.72PSID 0.08" 24BIT 8DIP |
230 | - |
|
Datasheet | TruStability® RSC | 8-DIP (0.510", 12.95mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.72PSI (±4.96kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±6.32PSI (±43.6kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M325M-000005-100PGSENSOR 100PSIG 1/4"NPT .02A |
104 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-000005-250PGSENSOR 250PSIG 1/4"NPT .02A |
1,989 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
5 PSI-D-4V-ASCXSENSOR 5PSID 0.19" 4.75V 4SIP |
870 | - |
|
Datasheet | ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±15PSI (±103.42kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
1 PSI-D-4V-ASCXSENSOR 1PSID 0.19" 4.75V 4SIP |
4,811 | - |
|
Datasheet | ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±5PSI (±34.47kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
30 PSI-D-4V-ASCXSENSOR 30PSID 0.19" 4.75V 4SIP |
3,705 | - |
|
Datasheet | ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±100PSI (±689.48kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
15 PSI-A-4V-ASCXSENSOR 15PSIA 0.19" 4.75V 4SIP |
4,076 | - |
|
Datasheet | ASCX | 4-SIP | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
10 INCH-D-4VSENSOR 0.36PSID 0.19" 4.25V |
4,335 | - |
|
Datasheet | ADCA | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

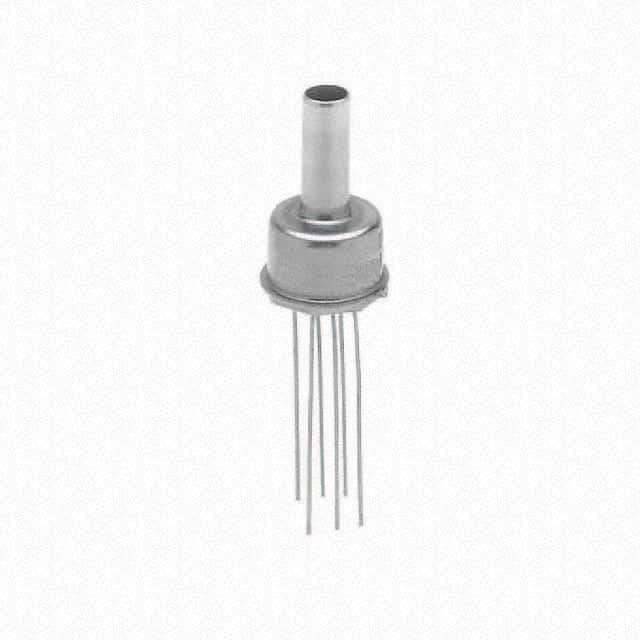

NPH-8-007GHSENSOR 1.02PSIG 0.19" .075V TO8 |
1,389 | - |
|
Datasheet | NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Vented Gauge | 1.02PSI (7kPa) | Wheatstone Bridge | 0 mV ~ 75 mV | ±1.5% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.08PSI (35kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
RSCDRRI002NDSE3SENSOR 0.07PSID 0.08" 24BIT 8DIP |
4,848 | - |
|
Datasheet | TruStability® RSC | 8-DIP (0.510", 12.95mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±4.86PSI (±33.5kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M3431-000006-01KPGSENSOR 1000PSIG 1/8"NPT 4.5V |
2,628 | - |
|
Datasheet | MSP340 | Cylinder | Bulk | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 2' | 2000PSI (13789.51kPa) | -20°C ~ 85°C | - | - | - | - |
|

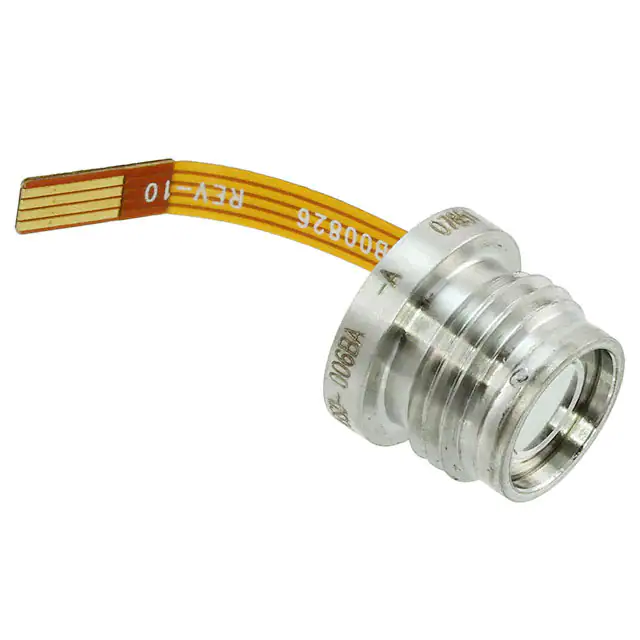

89BSD-006BA-ASENSOR 87.02PSIA 5/16" 24BIT |
120 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 87.02PSI (600kPa) | I2C | 24 b | ±0.3% | 1.8V ~ 3.6V | Male - 5/16" (7.94mm) UNEF | Threaded | - | Cable with Connector | 174.05PSI (1200kPa) | -40°C ~ 85°C | - | - | - | - |
|
89-03KA-0USENSOR 3000PSIA .208V |
281 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 9000PSI (62052.82kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C050PA4KSENSOR 50PSIA 1/8"NPT 0.1V |
2,150 | - |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
40PC100G2ASENSOR 100PSIG 0.18" 4.5V |
246 | - |
|
Datasheet | 40PC | 6-DIP Module | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 200PSI (1378.95kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|

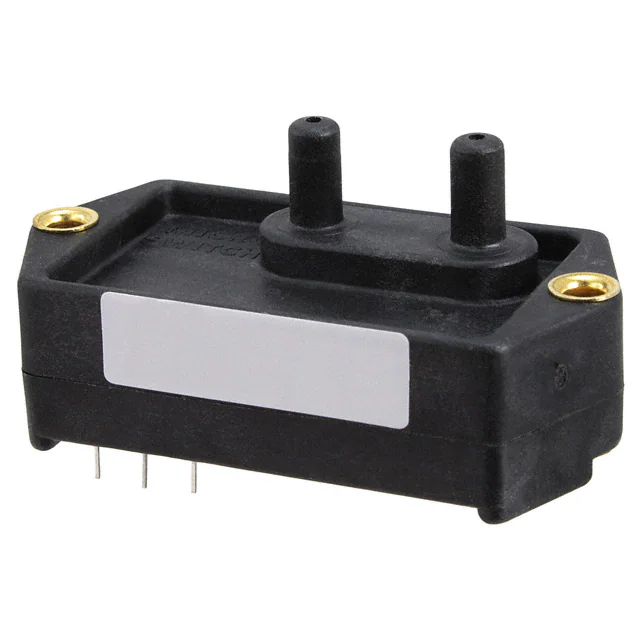

142PC01DSENSOR 1PSID 0.2" 6V |
4,280 | - |
|
Datasheet | 140PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 1 V ~ 6 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SPL07-003SENSOR 15.95PSI 10LGA |
16,356 | - |
|
Datasheet | - | 10-WFLGA Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C, SPI | - | ±0.03KPa | 1.7V ~ 3.6V | - | No Port | - | - | - | -40°C ~ 85°C | - | - | - | 10-LGA (2x2) |
