Pressure Sensors, Transducers
Compare the current Pressure Sensors, Transducers Sensors, Transducers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCDRRN100PGAB5SENSOR 100PSIG 0.08" 4.75V 8DIP |
1,652 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMANN015PAAA5SENSOR 15PSIA 0.19" 4.5V 8SMT |
2,801 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
ABP2LANT001BA2A3BBSENSOR 14.5PSIA 0.07" 14BIT 6SMT |
3,072 | - |
|
Datasheet | ABP2 | 6-SMD, No Lead, Top Port | Box | Active | Medical Ventilation | Absolute | 14.5PSI (100kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.07" (1.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
TBFLPNS060PGUCVSENSOR 60PSIG .03V 6SMD |
1,057 | - |
|
Datasheet | TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Analog Voltage | 30mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145PSI (999.74kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
24PCCFB6GSENSOR 15PSIC 0.25" .225V |
2,625 | - |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbed | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
ABP2LANT001PG2A3BBSENSOR 1PSIG 0.07" 14BIT 6SMT |
1,613 | - |
|
Datasheet | ABP2 | 6-SMD, No Lead, Top Port | Box | Active | Medical Ventilation | Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.07" (1.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 33.33PSI (229.83kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
SSCMRRN100MDSA3SENSOR 1.45PSID 0.08" 12BIT 8SMT |
2,061 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±20.31PSI (±140kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
LER00600TBMNUBAA01SENSOR 60PSIG SPST-NC 1/8"NPT |
3,557 | - |
|
Datasheet | LE | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 60PSI (413.69kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
MIPAF1XX667PSAAXSENSOR 667PSIS 7/16" 4.5V |
2,589 | - |
|
Datasheet | MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 667PSI (4598.8kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|

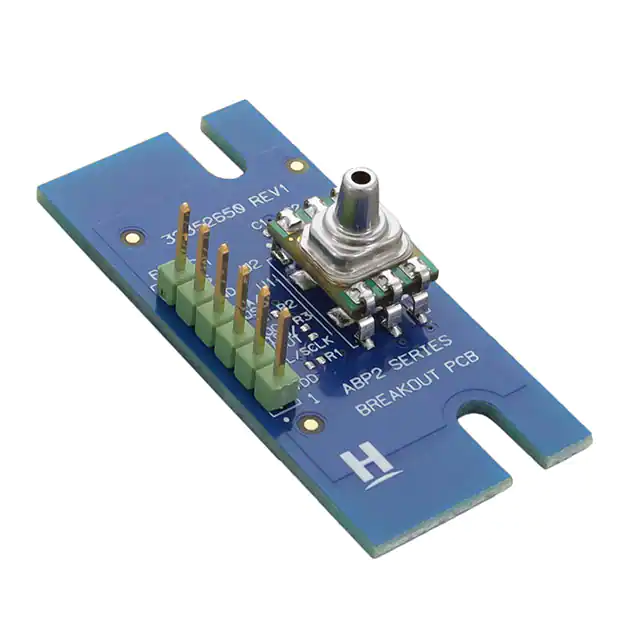

ABP2MVNT400MG2A3BBSENSOR 5.8PSIG 0.106" 14BIT 6SMD |
2,914 | - |
|
Datasheet | ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | Medical Ventilation | Gauge | 5.8PSI (40kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.106" (2.69mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
