Pressure Sensors, Transducers
Browse available Pressure Sensors, Transducers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

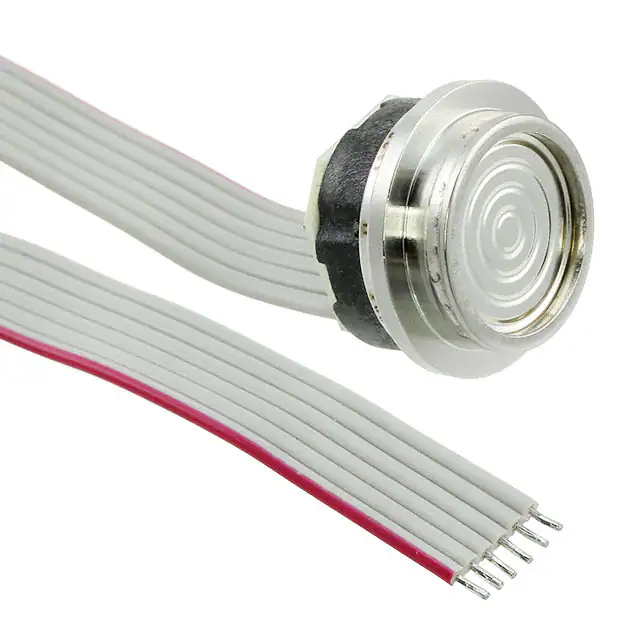

85-500A-0RSENSOR 500PSIA 0.1V |
4,081 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS01-G100KP-3WSENSOR 14.5PSIG 4.5V |
4,235 | - |
|
Datasheet | PS01 | Module | Box | Active | - | Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 105°C | - | - | - | - |
|
HSCDRRN001ND2A3SENSOR 0.04PSID 0.08" 12BIT 8DIP |
293 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCCFA6GSENSOR 15PSIC 0.2" .225V |
3,516 | - |
|
Datasheet | 24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCSNBN005NDAA5SENSOR 0.18PSID 0.19" 4.5V 4SIP |
3,378 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
PTE7100-22DC-0B050BNSENSOR 725.19PSIG 1/4"NPT 4.5V |
184 | - |
|
Datasheet | PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-22CC-2B050BNSENSOR 725.19PSIG 7/16" 4.5V |
1,578 | - |
|
Datasheet | PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-32DC-0B200BNSENSOR 2900.75PSIG 1/4"NPT 4.5V |
3,276 | - |
|
Datasheet | PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
26PCFFA6GSENSOR 100PSIC 0.2" 0.1V |
2,808 | - |
|
Datasheet | 26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
10 INCH-D-MVSENSOR 0.36PSID 0.19" .02V |
544 | - |
|
Datasheet | ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-D-MVSENSOR 1.08PSID 0.19" .02V |
2,336 | - |
|
Datasheet | ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

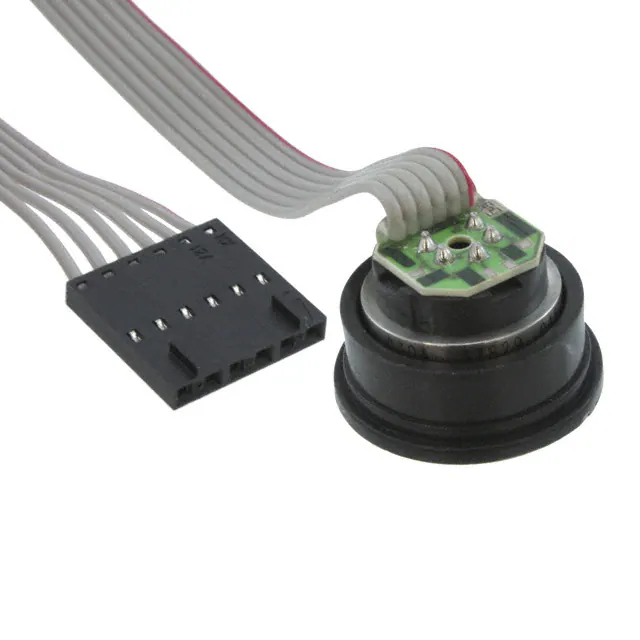

86-030A-CSENSOR 30PSIA 0.1V |
265 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

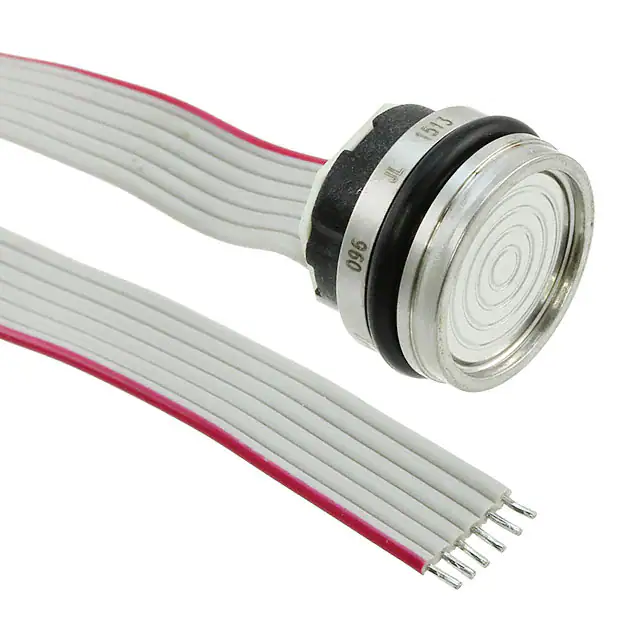

86-100G-RSENSOR 100PSIG 0.1V |
113 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300G-CSENSOR 300PSIG 0.1V |
2,759 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19J-005G2SENSOR 5PSIG 1/8"NPT 14BIT |
2,773 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 10PSI (68.95kPa) | -10°C ~ 80°C | - | - | - | - |
|
|
NPI-19J-100G2SENSOR 100PSIG 1/8"NPT 14BIT |
1,857 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 100PSI (689.48kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19J-200A2SENSOR 200PSIA 1/8"NPT 14BIT |
100 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-200G2SENSOR 200PSIG 1/8"NPT 14BIT |
1,584 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-15A-702SHSENSOR 1015.26PSIS .2V |
2,502 | - |
|
Datasheet | NPI-15 | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 1015.26PSI (7000kPa) | Wheatstone Bridge | 0 mV ~ 200 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 2030.53PSI (14000kPa) | -40°C ~ 125°C | - | - | - | - |
|
M3256-00000E-010BGSENSOR 145.04PSIG 1/4" .02A |
2,959 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 145.04PSI (1000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 290PSI (2000kPa) | -40°C ~ 125°C | - | - | - | - |
Pressure Sensors, Transducers FAQ
What Pressure Sensors, Transducers components can I source from EGOO?
You can browse available Pressure Sensors, Transducers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pressure Sensors, Transducers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
