Pressure Sensors, Transducers
Browse available Pressure Sensors, Transducers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19M-200A2SENSOR 200PSIA M12 14BIT |
4,403 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300G-RSENSOR 300PSIG 0.1V |
2,922 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|

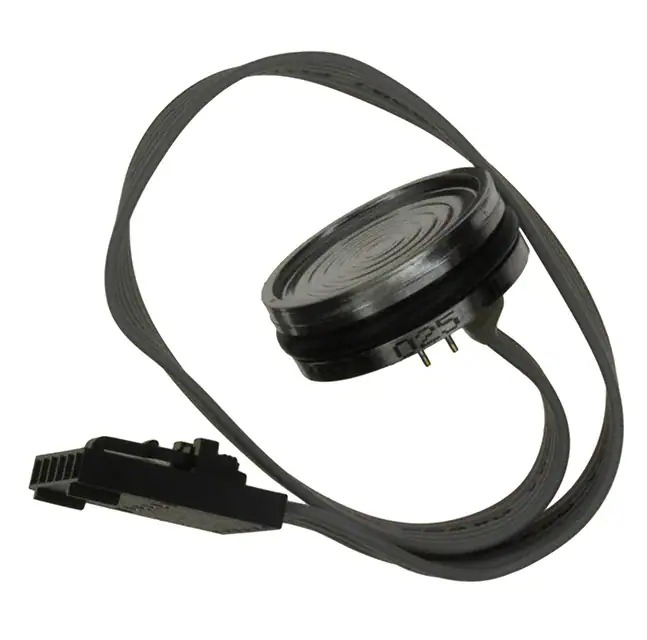

82-100G-CSENSOR 100PSIG 0.1V |
2,446 | - |
|
Datasheet | - | - | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

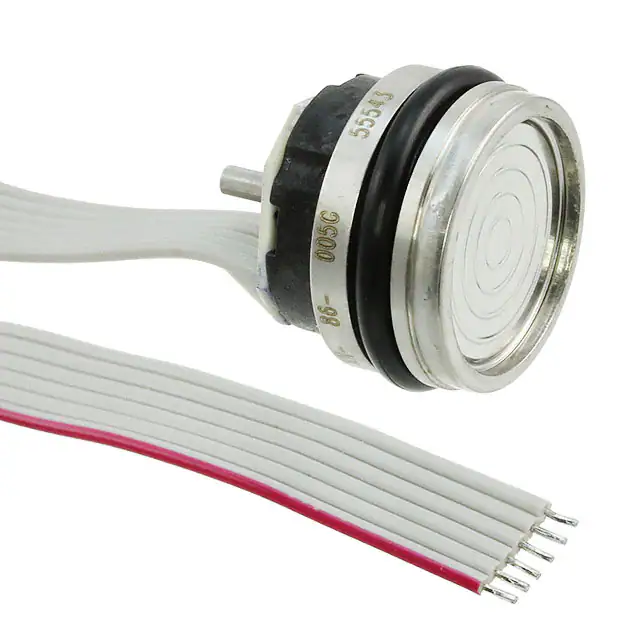

86-005G-RTSENSOR 5PSIG 0.1V |
4,772 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
|
NPI-19M-002G2SENSOR 2.5PSIG M12 14BIT |
4,585 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 2.5PSI (17.24kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 5PSI (34.47kPa) | -10°C ~ 80°C | - | - | - | - |
|
P993-5BSENSOR 0.18PSID 4V |
4,387 | - |
|
Datasheet | - | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
M3256-00000E-020BGSENSOR 290.08PSIG 1/4" .02A |
1,111 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 290.08PSI (2000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 580PSI (4000kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-5B-ASENSOR 0.18PSI 4V |
4,043 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
HSCDRRN004ND2A5SENSOR 0.15PSID 0.08" 12BIT 8DIP |
147 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
.jpg "NPI-12-101GH (5V)")
|
NPI-12-101GH (5V)SENSOR 15PSIG |
1,213 | - |
|
Datasheet | NPI-12 | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | - | ±4% | 5V | - | No Port | - | Cable | 50PSI (344.74kPa) | 10°C ~ 40°C | - | - | Through Hole | - |
|
|
M325M-00000P-250PGSENSOR 250PSIG 7/16" .02A |
4,679 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-00000P-01KPGSENSOR 1000PSIG 7/16" .02A |
4,203 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M326M-00000B-007BGSENSOR 101.53PSIG 1/4" 5V |
2,773 | - |
|
Datasheet | - | - | Box | Active | - | Gauge | 101.53PSI (700kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) G | Threaded | Amplified Output, Temperature Compensated | - | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-2B-CSENSOR 0.07PSI 4V |
2,619 | - |
|
Datasheet | - | 2-SIP Module | Bulk | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
HSCDRRN010MDAA3SENSOR 0.15PSID 0.08" 2.97V 8DIP |
3,090 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRRN001ND2A3SENSOR 0.04PSID 0.08" 12BIT 8SMD |
120 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
85-015G-FCSENSOR 15PSIG 0.1V |
1,927 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
P993-1BSENSOR 0.04PSID 4V |
4,231 | - |
|
Datasheet | - | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.04PSI ~ 0.04PSI (-0.25kPa ~ 0.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-10-ASENSOR 0.36PSI 4V |
240 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
P992-2-ASENSOR 0.07PSI 4V |
1,545 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
Pressure Sensors, Transducers FAQ
What Pressure Sensors, Transducers components can I source from EGOO?
You can browse available Pressure Sensors, Transducers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pressure Sensors, Transducers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
