PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRG400-16FRESETTABLE FUSE - PPTC RADIAL LE |
600 | - |
|
Datasheet | Radial, Disc | FRG | Bulk | Active | - | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
FRU250-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 | - |
|
Datasheet | Radial, Disc | FRU | Bulk | Active | - | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
FRU300-30FRESETTABLE FUSE - PPTC RADIAL LE |
340 | - |
|
Datasheet | Radial, Disc | FRU | Bulk | Active | - | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
FRV012-240FRESETTABLE FUSE - PPTC RADIAL LE |
990 | - |
|
Datasheet | Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 120 mA | 300 mA | 1.2 A | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
FSMD100-60-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
1,000 | - |
|
Datasheet | 2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 60V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD330-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
900 | - |
|
Datasheet | 2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 24V | 3.3 A | 5.5 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
MF-USML230-2PTC RESET FUSE 6V 2.3A 1210 |
4,074 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.3 A | 4.6 A | 50 A | 3.5 s | 4.5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
MF-RX110-0-99PTC RESET FUSE 60V 1.1A RADIAL |
6,304 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX | Bulk | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|

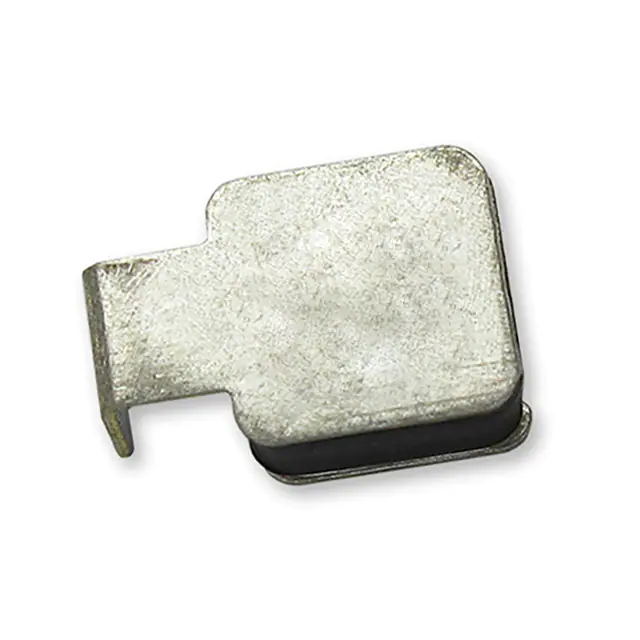

TSL250-080F-B-0.5-2PTC RESET FUSE 80V 80MA 2SMD |
743 | - |
|
Datasheet | 2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Obsolete | Polymeric | 80V (250V Int) | 80 mA | 240 mA | 3 A | 1.6 s | 5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | - | 0.146" (3.70mm) | - |
|
|
FRV025-240FRESETTABLE FUSE - PPTC RADIAL LE |
490 | - |
|
Datasheet | Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
|
FRG800-16FRESETTABLE FUSE - PPTC RADIAL LE |
380 | - |
|
Datasheet | Radial, Disc | FRG | Bulk | Active | - | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
FRX250-90FRESETTABLE FUSE - PPTC RADIAL LE |
290 | - |
|
Datasheet | Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia (21.30mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
FRU500-30FRESETTABLE FUSE - PPTC RADIAL LE |
380 | - |
|
Datasheet | Radial, Disc | FRU | Bulk | Active | - | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
FRU600-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 | - |
|
Datasheet | Radial, Disc | FRU | Bulk | Active | - | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
RXEF017-APPTC RESET FUSE 60V 170MA RADIAL |
250 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
16R1100GFPTC RESET FUSE 16V 11A RADIAL |
400 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
FRG900-16FRESETTABLE FUSE - PPTC RADIAL LE |
400 | - |
|
Datasheet | Radial, Disc | FRG | Bulk | Active | - | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
FRG1000-16FRESETTABLE FUSE - PPTC RADIAL LE |
280 | - |
|
Datasheet | Radial, Disc | FRG | Bulk | Active | - | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
RXEF010-APPTC RESET FUSE 60V 100MA RADIAL |
1,132 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
PTR016V1200-TRPTC RESET FUSE 16V 12A RADIAL |
9,300 | - |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
