PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-USMD020-2PTC RESET FUSE 30V 200MA 1210 |
5,015 | - |
|
Datasheet | 1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
MF-USMD110-2PTC RESET FUSE 6V 1.1A 1210 |
7,195 | - |
|
Datasheet | 1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.019" (0.48mm) | - |
|
MF-SMDF100-2PTC RESET FUSE 15V 1.1A 2018 |
2,929 | - |
|
Datasheet | 2018 (5045 Metric), Concave | Multifuse®, MF-SMDF | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.1 A | 2.2 A | 40 A | 500 ms | 100 mOhms | 390 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.049" (1.25mm) | - |
|

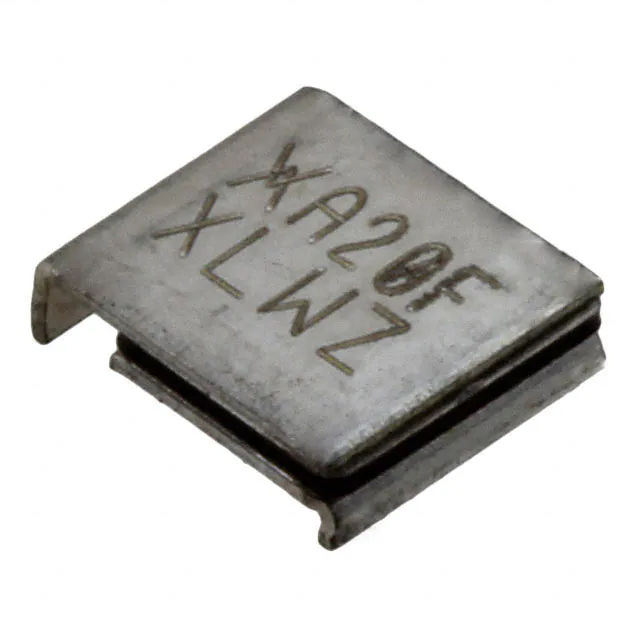

SMD200F-2018-2PTC RESET FUSE 6V 2A 2SMD |
7,060 | - |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4.2 A | 40 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.060" (1.52mm) | - |
|
MF-RHT750-AP-14PTC 7.5A 16V RADIAL LEADED HI-TE |
8,514 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT750-2-14PTC 7.5A 16V RADIAL LEADED HI-TE |
3,392 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
CMF-SDP75-2PTC RESET FUSE 230V 70MA 4SMD |
5,417 | - |
|
Datasheet | 4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (600V Int) | 70 mA | 150 mA | 2.5 A | 120 ms | - | - | 75 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.433" L x 0.354" W (11.00mm x 9.00mm) | - | 0.453" (11.50mm) | - |
|
B59960C0120A051PTC RESET FUSE 80V 250MA RADIAL |
6,911 | - |
|
Datasheet | Radial, Disc | B59960 | Tape & Reel (TR) | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
PTR016V1400-TRPTC RESET FUSE 16V 14A RADIAL |
8,303 | - |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.122" W (23.50mm x 3.10mm) | 1.098" (27.90mm) | - | 0.394" (10.00mm) |
|
|
PTR016V1100-TR1PTC RESET FUSE 16V 11A RADIAL |
2,781 | - |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.142" (29.00mm) | - | 0.197" (5.00mm) |
|
PTGL05AR331M7A52B0PTC RESET FUSE 330OHM 120C |
2,998 | - |
|
Datasheet | Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 330 mOhms | - | - | - | - | Through Hole | - | - | - | - |
|
RXEF135K-APPTC RESET FUSE 72V 1.35A RADIAL |
3,764 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.118" T (13.58mm x 3.00mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
B59975C0120A051PTC RESET FUSE 30V 450MA RADIAL |
4,648 | - |
|
Datasheet | Radial, Disc | B59975 | Tape & Reel (TR) | Active | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTCTL4MR250GTEPTC RESET FUSE 220V 70MA RADIAL |
4,244 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 220V | 70 mA | 200 mA | 4 A | 2.5 s | - | - | 25 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
|
PTCTL4MR350STEPTC RESET FUSE 600V 70MA RADIAL |
5,278 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 600V | 70 mA | 600 mA | 1 A | 3 s | - | - | 35 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.315" Dia x 0.197" T (8.00mm x 5.00mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTCTZ3NR150KTEPTC RESET FUSE 300V 150MA 2SMD |
3,660 | - |
|
Datasheet | 2-SMD | PTCTZ | Tape & Reel (TR) | Obsolete | Ceramic | 300V | 150 mA | 250 mA | 1.5 A | 1.5 s | - | - | 20 Ohms | - | - | - | - | Surface Mount | 0.283" L x 0.394" W (7.20mm x 10.00mm) | - | 0.142" (3.60mm) | - |
|
|
PTCTZ3MR250HTEPTC RESET FUSE 265V 120MA 2SMD |
8,464 | - |
|
Datasheet | 2-SMD | PTCTZ | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 120 mA | 220 mA | 2 A | 1.3 s | - | - | 25 Ohms | - | - | - | - | Surface Mount | 0.283" L x 0.394" W (7.20mm x 10.00mm) | - | 0.142" (3.60mm) | - |
|
MF-RHT1000-APPTC RESET FUSE 16V 10A RADIAL |
5,341 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
PTR030V0800-TRPTC RESET FUSE 30V 8A RADIAL |
7,314 | - |
|
Datasheet | Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.150" (29.20mm) | - | 0.394" (10.00mm) |
|
|
PTR030V0800-TR1PTC RESET FUSE 30V 8A RADIAL |
2,547 | - |
|
Datasheet | Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.327" (33.70mm) | - | 0.394" (10.00mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
