PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPAL0.45NPTC RESET FUSE 30V 8A RADIAL |
8,055 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPAL1.20NPTC RESET FUSE 30V 600MA RADIAL |
7,542 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPAL4.60NPTC RESET FUSE 30V 250MA RADIAL |
3,544 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025NPTC RESET FUSE 265V 100MA RADIAL |
9,094 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0035NPTC RESET FUSE 265V 80MA RADIAL |
8,840 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0055NPTC RESET FUSE 265V 60MA RADIAL |
6,917 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0065NPTC RESET FUSE 265V 55MA RADIAL |
6,067 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
RUE400-1PTC RESET FUSE 30V 4A RADIAL |
7,585 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.831" (21.10mm) | - | 0.201" (5.10mm) |
|
RXE050-1PTC RESET FUSE 72V 500MA RADIAL |
9,724 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
|
RXE010SPTC RESET FUSE 60V 100MA RADIAL |
7,866 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
|
RXE050SPTC RESET FUSE 72V 500MA RADIAL |
8,159 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
RGE400PTC RESET FUSE 16V 4A RADIAL |
7,198 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | - | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
RGE600PTC RESET FUSE 16V 6A RADIAL |
9,513 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | - | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|
RGE800PTC RESET FUSE 16V 8A RADIAL |
7,972 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 6 mOhms | 18 mOhms | - | - | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
RGE1200PTC RESET FUSE 16V 12A RADIAL |
9,322 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | - | - | - | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
RHE450PTC RESET FUSE 16V 4.5A RADIAL |
4,693 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 3.6 Ohms | - | - | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|
|
RHE600PTC RESET FUSE 16V 6A RADIAL |
9,500 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 4.1 Ohms | - | - | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
RHE750PTC RESET FUSE 16V 7.5A RADIAL |
7,423 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 4.5 Ohms | - | - | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|

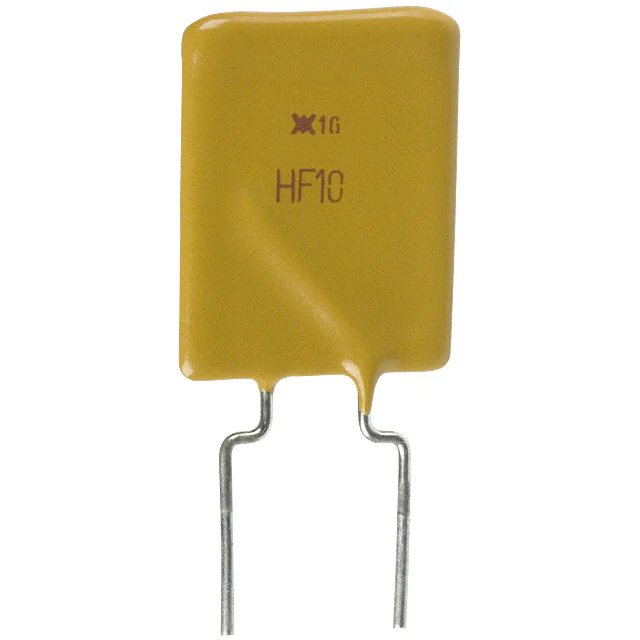

RHE1000PTC RESET FUSE 16V 10A RADIAL |
6,616 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | - | - | - | - | - | - | Through Hole | 0.689" L x 0.120" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
RHE1300PTC RESET FUSE 16V 13A RADIAL |
8,811 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | - | - | - | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
