PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

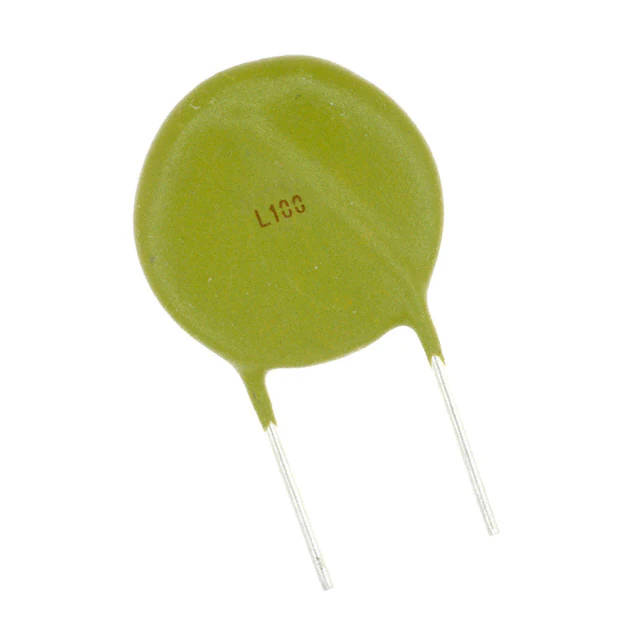

LVR100SPTC RESET FUSE 240V 1A RADIAL |
2,661 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|

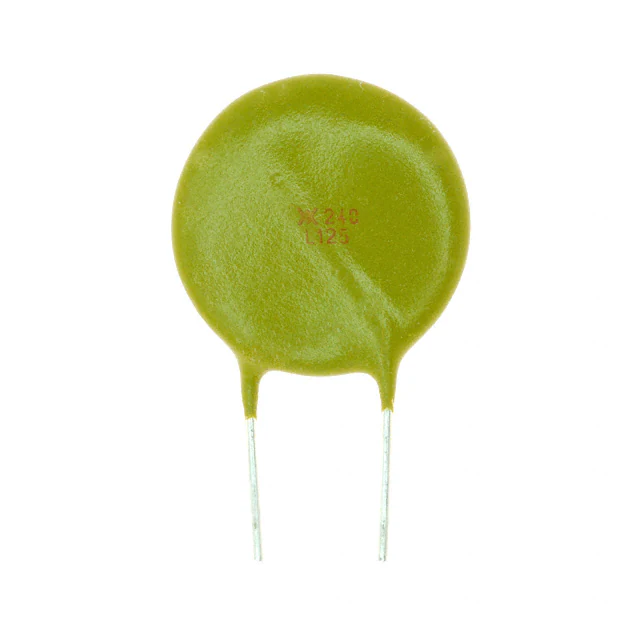

LVR125SPTC RESET FUSE 240V 1.25A RADIAL |
6,809 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.400" (10.15mm) |
|
LVR200SPTC RESET FUSE 240V 2A RADIAL |
8,066 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.400" (10.15mm) |
|
PTGL07BB220N0B52A0PTC RESET FUSE 250V 130MA RADIAL |
9,900 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Cut Tape (CT) | Obsolete | Ceramic | 250V | 130 mA | 250 mA | 500 mA | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) |
|
PTGL09AR390N0B52A0PTC RESET FUSE 250V 115MA RADIAL |
7,306 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 250V | 115 mA | 245 mA | 600 mA | - | - | - | 39 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR250H8B52B0PTC RESET FUSE 265V 150MA RADIAL |
4,829 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 150 mA | 290 mA | 1 A | - | - | - | 25 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
CMF-SD25-2PTC RESET FUSE 230V 130MA 4SMD |
8,226 | - |
|
Datasheet | 4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 130 mA | 260 mA | 2.8 A | 300 ms | - | - | 25 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|

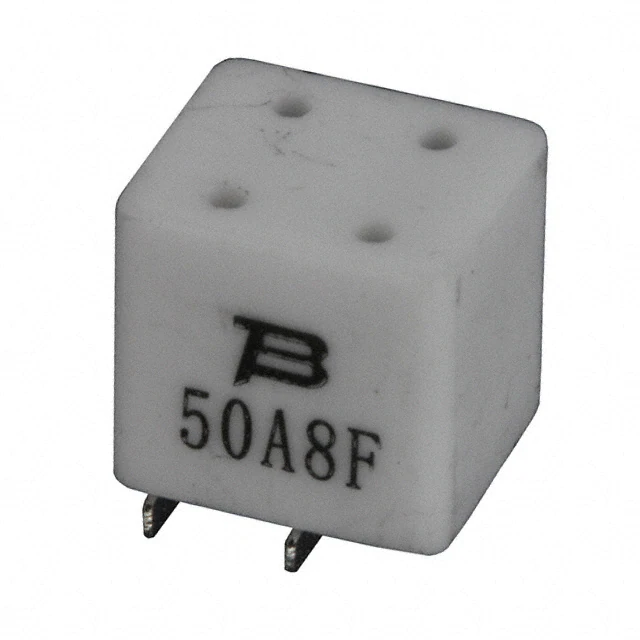

CMF-SD50A-10-2PTC RESET FUSE 230V 90MA 4SMD |
8,646 | - |
|
Datasheet | 4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Surface Mount | 0.319" L x 0.282" W (8.10mm x 7.15mm) | - | 0.335" (8.50mm) | - |
|
YPBL2.30TPTC RESET FUSE 80V 450MA RADIAL |
8,550 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPBL5.60TPTC RESET FUSE 80V 250MA RADIAL |
6,815 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL9.40TPTC RESET FUSE 80V 150MA RADIAL |
6,423 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 150 mA | 300 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL0025TPTC RESET FUSE 80V 85MA RADIAL |
9,673 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 85 mA | 170 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0006TPTC RESET FUSE 265V 330MA RADIAL |
3,096 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 330 mA | 660 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025TPTC RESET FUSE 265V 100MA RADIAL |
8,459 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0120TPTC RESET FUSE 265V 35MA RADIAL |
7,011 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 35 mA | 80 mA | 400 mA | - | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPDL0600TPTC RESET FUSE 420V 21MA RADIAL |
7,676 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK1200TPTC RESET FUSE 550V 15MA RADIAL |
7,348 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK3500TPTC RESET FUSE RADIAL DISC |
3,711 | - |
|
Datasheet | Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.157" Dia x 0.157" T (4.00mm x 4.00mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|
SRP120SFPTC RESET FUSE 15V 1.2A STRAP |
2,513 | - |
|
Datasheet | Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.2 A | 2.7 A | 100 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
SRP175LFPTC RESET FUSE 15V 1.75A STRAP |
7,434 | - |
|
Datasheet | Strap | PolySwitch® | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 90 mOhms | - | - | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
