PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-SM260-2-99PTC RESET FUSE 6V 2.6A 2SMD |
7,090 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SM300-2-99PTC RESET FUSE 6V 3A 2SMD |
5,880 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 100 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|

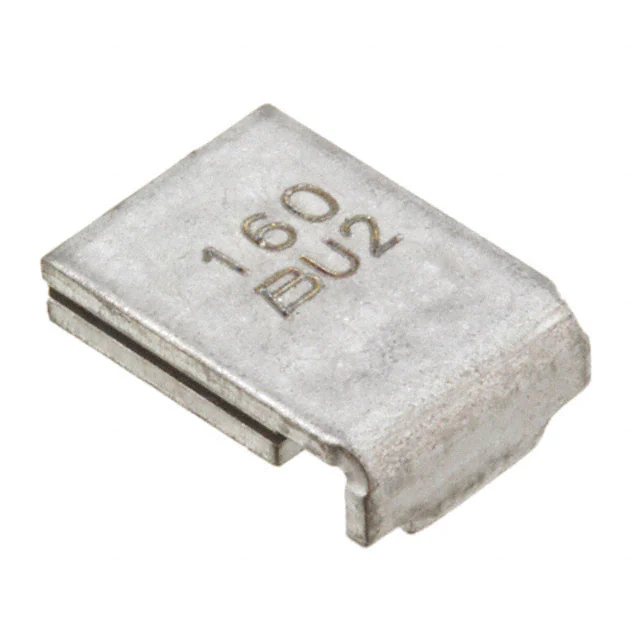

MF-SMHT136-2-6PTC RESET FUSE 16V 1.36A 2SMD |
6,130 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.36 A | 2.72 A | 100 A | 10 s | 85 mOhms | 330 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.314" L x 0.264" W (7.98mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SMHT160-2-6PTC RESET FUSE 16V 1.6A 2SMD |
3,012 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 10 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.374" L x 0.234" W (9.50mm x 5.94mm) | - | 0.118" (3.00mm) | - |
|
PTGL04AR130H2B51B0PTC RESET FUSE 30V 180MA RADIAL |
2,670 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 180 mA | 350 mA | 700 mA | - | - | - | 13 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.157" W (5.50mm x 4.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
PTGL05AR121M9N51B0PTC RESET FUSE 265V 47MA RADIAL |
2,312 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 47 mA | 75 mA | 300 mA | - | - | - | 120 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.256" T (6.50mm x 6.50mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
PTGL05AR550H4P51B0PTC RESET FUSE 80V 62MA RADIAL |
9,553 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 80V | 62 mA | 115 mA | 700 mA | - | - | - | 55 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.177" T (5.50mm x 4.50mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR220M3P51B0PTC RESET FUSE 56V 115MA RADIAL |
6,828 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 115 mA | 205 mA | 1 A | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PTGL07AR330M6A51B0PTC RESET FUSE 140V 130MA RADIAL |
3,480 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | - | 140V | 130 mA | 200 mA | 500 mA | - | - | - | - | - | - | - | - | Through Hole | 0.291" Dia x 0.236" T (7.40mm x 6.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AR4R6H2B51B0PTC RESET FUSE 30V 340MA RADIAL |
2,918 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 340 mA | 610 mA | 2 A | - | - | - | 4.6 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PTGL07AR560M9A51B0PTC RESET FUSE 265V 95MA RADIAL |
2,152 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 95 mA | 165 mA | 800 mA | - | - | - | 56 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.323" Dia x 0.256" T (8.20mm x 6.50mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD100N2B51A0PTC RESET FUSE 24V 124MA RADIAL |
8,004 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 24V | 124 mA | 251 mA | 2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD100N2B51B0PTC RESET FUSE 24V 124MA RADIAL |
7,567 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 124 mA | 251 mA | 2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD150N3B51B0PTC RESET FUSE 32V 100MA RADIAL |
3,822 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 100 mA | 195 mA | 1.5 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD220N3B51B0PTC RESET FUSE 32V 75MA RADIAL |
2,409 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 75 mA | 160 mA | 1.5 A | - | - | - | 22 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD470N3B51B0PTC RESET FUSE 32V 55MA RADIAL |
6,580 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 55 mA | 115 mA | 1.5 A | - | - | - | 47 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR390M9C61B0PTC RESET FUSE 265V 130MA RADIAL |
7,672 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 130 mA | 210 mA | 1.2 A | - | - | - | 39 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.256" T (10.00mm x 6.50mm) | 0.630" (16.00mm) | - | 0.256" (6.50mm) |
|
PTGL09AR9R4H4B51B0PTC RESET FUSE 80V 240MA RADIAL |
8,620 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 80V | 240 mA | 450 mA | 3 A | - | - | - | 9.4 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.177" T (9.50mm x 4.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|

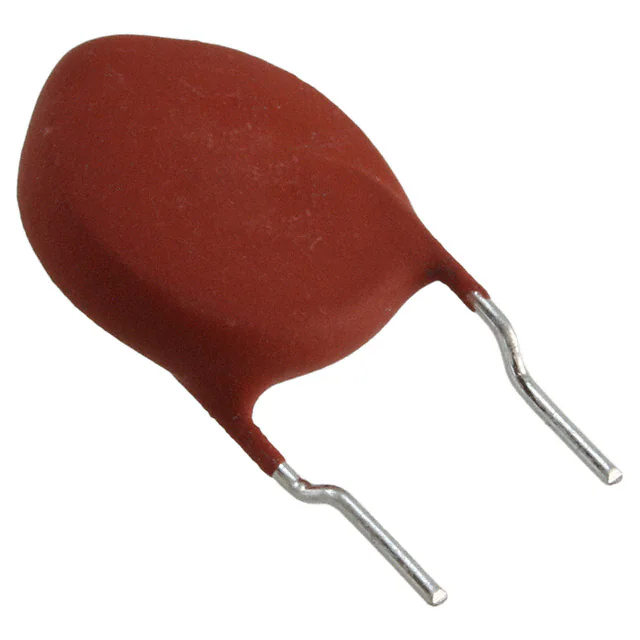

PTGL12AR150H8B72B0PTC RESET FUSE 265V 210MA RADIAL |
2,087 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 210 mA | 400 mA | 1.5 A | - | - | - | 15 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.236" T (12.50mm x 6.00mm) | 0.728" (18.50mm) | - | 0.295" (7.50mm) |
|

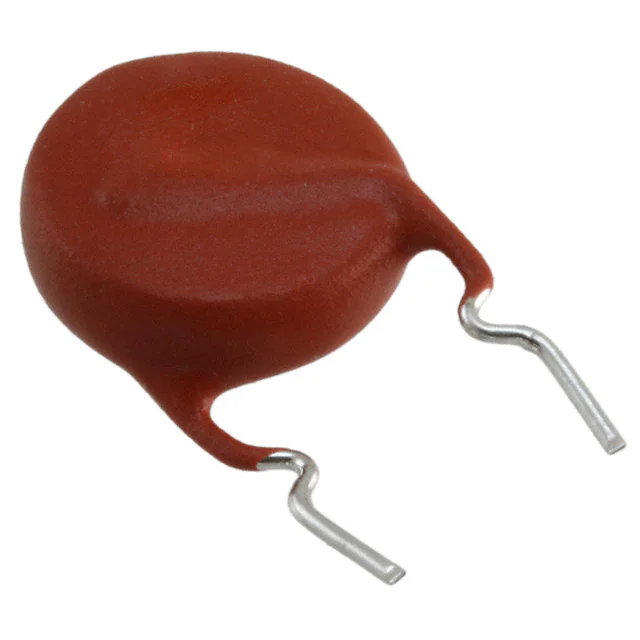

PTGL12AR270M9C01B0PTC RESET FUSE 265V 200MA RADIAL |
6,573 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 200 mA | 310 mA | 1.5 A | - | - | - | 27 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.551" Dia x 0.256" T (14.00mm x 6.50mm) | 0.787" (20.00mm) | - | 0.394" (10.00mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
