PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-120-2PTC RESET FUSE 60V 120MA RADIAL |
2,842 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
MF-SMDF100/33X-2PTC RESETTABLE 1.1A 33V SMD 2018 |
2,643 | - |
|
Datasheet | 2018 (5045 Metric), Concave | Multifuse®, MF-SMDF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 60 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.049" (1.25mm) | - |
|
0ZTJ0020FF2EPTC RESET FUSE 30V 200MA 1206 |
1,567 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 500 mA | 10 A | 100 ms | 600 mOhms | 4.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
PICOASMDC012S-2PTC RESET FUSE 15V 120MA 0805 |
3,201 | - |
|
Datasheet | 0805 (2012 Metric) | PolySwitch®, picoASMDC | Tape & Reel (TR) | Active | Polymeric | 15V | 120 mA | 300 mA | 20 A | 100 ms | 1.5 Ohms | 9 Ohms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
RGEF900PTC RESET FUSE 16V 9A RADIAL |
1,460 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.100" W (13.50mm x 2.50mm) | 0.854" (21.70mm) | - | 0.199" (5.05mm) |
|
RUEF500-2PTC RESET FUSE 30V 5A RADIAL |
8,867 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.949" (24.10mm) | - | 0.400" (10.15mm) |
|
ASMD050F-2PTC RESET FUSE 60V 370MA 2SMD |
2,429 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 60V | 370 mA | 980 mA | 10 A | 20 s | 290 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
2920L600/12MRPTC RESET FUSE 12V 6A 2920 |
95,626 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 12V | 6 A | 12 A | 50 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
LVR040K-2PTC RESET FUSE 240V 400MA RADIAL |
7,688 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.823" (20.90mm) | - | 0.200" (5.08mm) |
|

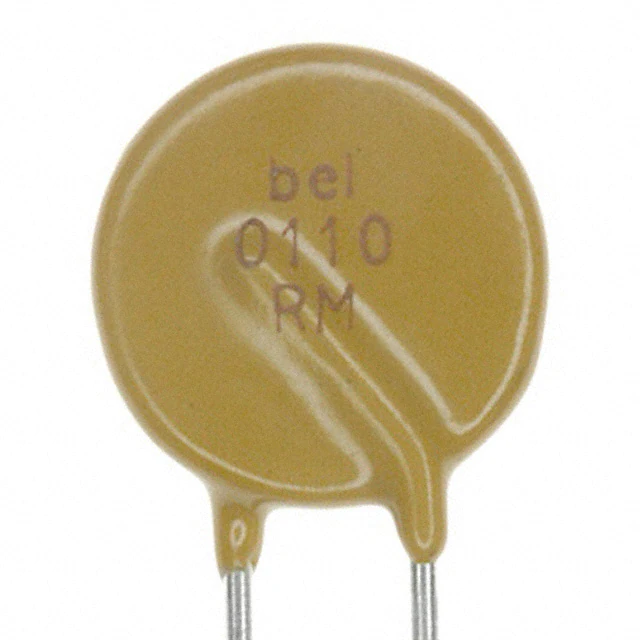

0ZRM0110FF1EPTC RESET FUSE 120V 1.1A RADIAL |
3,657 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.1 A | 2.2 A | 8 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.524" Dia x 0.161" T (13.30mm x 4.10mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
RKEF400PTC RESET FUSE 60V 4A RADIAL |
5,526 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.400" (10.15mm) |
|
|
2920L600/16MRPTC RESET FUSE 16V 6.0A 2920 |
4,026 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 12 A | 40 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
MF-R250-2PTC RESET FUSE 30V 2.5A RADIAL |
2,505 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
30R400UFPTC RESET FUSE 30V 4A RADIAL |
1,921 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.866" (22.00mm) | - | 0.201" (5.10mm) |
|

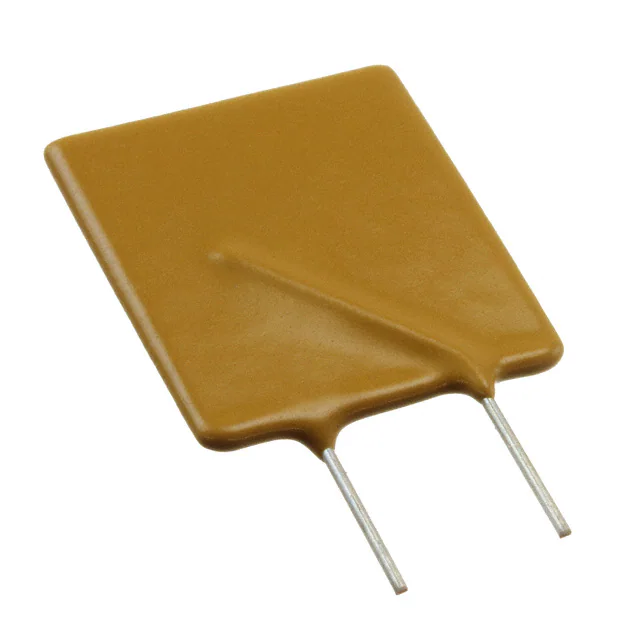

0ZRP0500FF2APTC RESET FUSE 60V 5A RADIAL |
21,862 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.142" (29.00mm) | - | 0.402" (10.20mm) |
|
B59980C0120A070PTC RESET FUSE 80V 85MA RADIAL |
14,964 | - |
|
Datasheet | Radial, Disc | B59980 | Bulk | Active | Ceramic | 80V | 85 mA | 170 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTCTL4MR500SBEPTC RESET FUSE 600V 50MA RADIAL |
9,827 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 600V | 50 mA | 140 mA | 1 A | 1 s | - | - | 50 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.315" Dia x 0.157" T (8.00mm x 4.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
30R300UPRPTC RESET FUSE 30V 3A RADIAL |
3,828 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.756" (19.20mm) | - | 0.201" (5.10mm) |
|
|
0603L008YRPOLYSWITCH RESETTABLE PPTC |
3,782 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 15V | 80 mA | 200 mA | 40 A | 1 s | 2.5 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.024" (0.60mm) | - |
|
250S130-RADRPTC RESET FUSE 60V 130MA 2SMD |
3,538 | - |
|
Datasheet | 2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 1.4 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.370" L x 0.291" W (9.40mm x 7.40mm) | - | 0.146" (3.70mm) | - |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
