PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-SM100/33-2PTC RESET FUSE 33V 1.1A 2SMD |
31,940 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
MF-MSMF020/60-2PTC RESET FUSE 60V 200MA 1812 |
16,528 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 150 ms | 400 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
MF-SM075/60-2PTC RESET FUSE 60V 750MA 2SMD |
11,450 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
NANOSMDC150F-2PTC RESET FUSE 6V 1.5A 1206 |
25,806 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.035" (0.89mm) | - |
|
|
NANOSMDC035F-2PTC RESET FUSE 16V 350MA 1206 |
16,319 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 20 A | 100 ms | 450 mOhms | 1.35 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.82mm) | - |
|

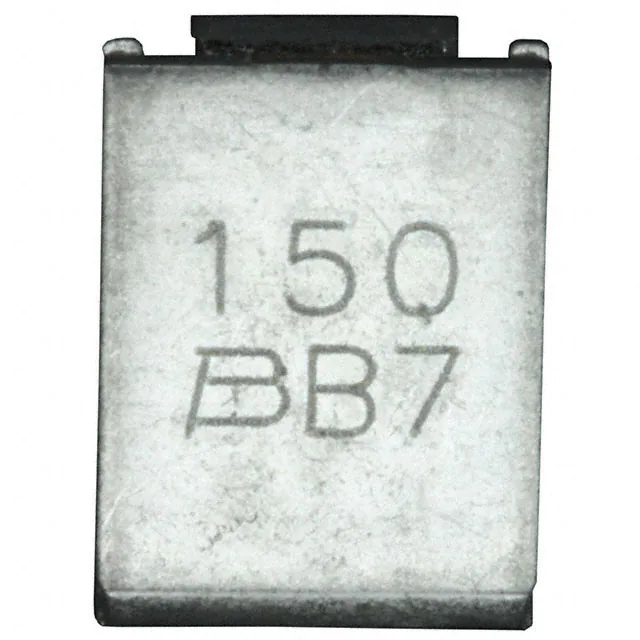

MF-SM150/33-2PTC RESET FUSE 33V 1.5A 2SMD |
15,612 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 40 A | 5 s | 60 mOhms | 230 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
NANOSMDC050F/13.2-2PTC RESET FUSE 13.2V 500MA 1206 |
15,397 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1.1 A | 100 A | 100 ms | 200 mOhms | - | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.029" (0.74mm) | - |
|

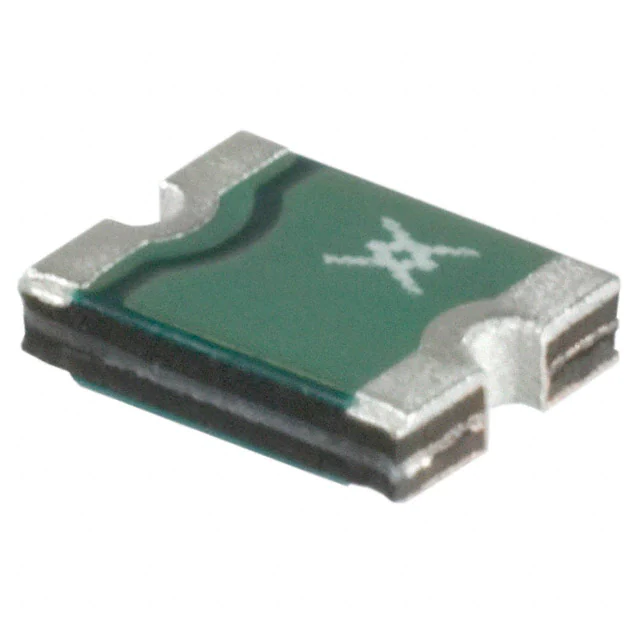

MICROSMD005F-2PTC RESET FUSE 30V 50MA 1210 |
14,613 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
MF-FSMF050X-2PTC RESET FUSE 6V 500MA 0603 |
47,024 | - |
|
Datasheet | 0603 (1608 Metric), Concave | Multifuse®, MF-FSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 100 mOhms | 800 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.039" (1.00mm) | - |
|
MF-SMDF050-2PTC RESET FUSE 60V 550MA 2018 |
43,706 | - |
|
Datasheet | 2018 (5045 Metric), Concave | Multifuse®, MF-SMDF | Tape & Reel (TR) | Active | Polymeric | 60V | 550 mA | 1.2 A | 10 A | 3 s | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.043" (1.09mm) | - |
|
|
NANOASMDC010F-2PTC RESET FUSE 60V 100MA 1206 |
35,052 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.062" W (3.20mm x 1.58mm) | - | 0.039" (1.00mm) | - |
|
|
MICROSMD010F-2PTC RESET FUSE 30V 100MA 1210 |
30,648 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 250 mA | 10 A | 1 s | 2.1 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
NANOSMDC110F-2PTC RESET FUSE 6V 1.1A 1206 |
23,501 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 100 ms | 70 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.026" (0.67mm) | - |
|
MINISMDC030F-2PTC RESET FUSE 30V 300MA 1812 |
5,962 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 30V | 300 mA | 600 mA | 40 A | 100 ms | 200 mOhms | 1.75 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.89mm) | - |
|
RUEF110PTC RESET FUSE 30V 1.1A RADIAL |
5,322 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 1.1 A | 2.2 A | 100 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
|
NANOSMDC075F-2PTC RESET FUSE 6V 750MA 1206 |
4,572 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 90 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.027" (0.68mm) | - |
|
RXEF040PTC RESET FUSE 72V 400MA RADIAL |
3,236 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
MINISMDC260F-2PTC RESET FUSE 6V 2.6A 1812 |
2,611 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 43 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.031" (0.78mm) | - |
|
1206L016WRPTC RESET FUSE 30V 160MA 1206 |
66,778 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 370 mA | 100 A | 300 ms | 1.2 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
|
1206L012WRPTC RESET FUSE 30V 125MA 1206 |
65,421 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 125 mA | 290 mA | 100 A | 200 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
