PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-145-RA-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
9,499 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
MF-RHT400-0PTC RESET FUSE 16V 4A RADIAL |
2,500 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT300-0PTC RESET FUSE 16V 3A RADIAL |
2,195 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
RGEF900-2PTC RESET FUSE 16V 9A RADIAL |
1,996 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.532" L x 0.100" W (13.50mm x 2.50mm) | 0.854" (21.70mm) | - | 0.199" (5.05mm) |
|
RHEF650-2PTC RESET FUSE 16V 6.5A RADIAL |
1,480 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
MF-NSML175/12-2PTC RESET FUSE 12V 1.75A 1206 |
3,953 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 1.75 A | 3.5 A | 50 A | 5 s | 6 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
MF-RG1100-0PTC RESET FUSE 16V 11A RADIAL |
2,993 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 15.2 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 0.988" (25.10mm) | - | 0.201" (5.10mm) |
|
250R120-RCZRPTC RESET FUSE 60V 120MA RADIAL |
5,407 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
MF-RM040/240-0PTC RESET FUSE 240V 400MA RADIAL |
2,840 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.823" (20.90mm) | - | 0.114" (2.90mm) |
|
|
MF-RHT550-0PTC RESET FUSE 16V 5.5A RADIAL |
2,715 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
2920L600/12MR-APTC RESET FUSE 12V 6A 2920 |
2,367 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 12V | 6 A | 12 A | 50 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
|
MF-RG650-0PTC RESET FUSE 16V 6.5A RADIAL |
2,850 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bag | Active | Polymeric | 16V | 6.5 A | 11.1 A | 100 A | 3.5 s | 8.8 mOhms | 24 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
AHRF600-2PTC RESET FUSE 16V 6A RADIAL |
1,998 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 12 A | 100 A | 6.5 s | 10 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.200" (5.08mm) |
|

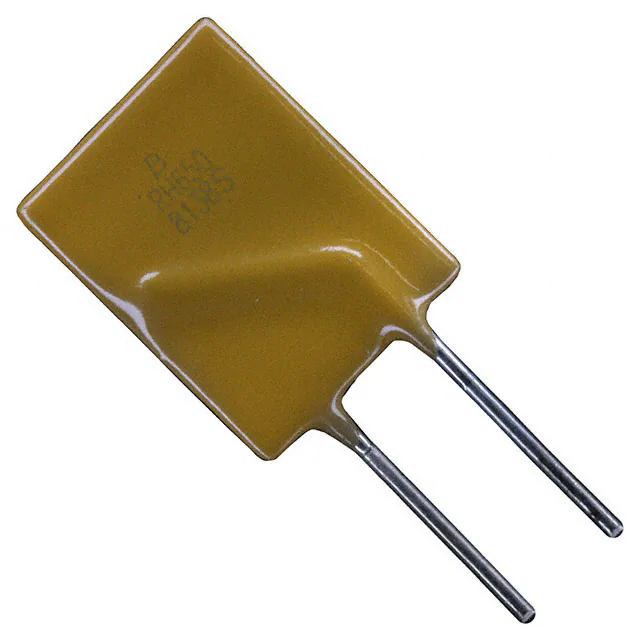

MF-RHT650-0PTC RESET FUSE 16V 6.5A RADIAL |
2,665 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.114" (2.90mm) |
|
|
MICROASMDCH150F-2PPTC-MINI-PSW |
1,215 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 4.5 A | 40 A | 1 s | 25 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
TRF250-145T-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
1,970 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTCCL05H630HTEPTC RESET FUSE 265V 63MA RADIAL |
1,450 | - |
|
Datasheet | Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 63 mA | 95 mA | 450 mA | - | - | - | 120 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
LSP550PTC RESET FUSE 16V 5.5A |
9,778 | - |
|
Datasheet | Strap | PolySwitch®, LSP | Bag | Active | Polymeric | 16V | 5.5 A | 10.2 A | 50 A | 5 s | 8 mOhms | 26 mOhms | 13 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | User Defined | 0.787" L x 0.402" W (20.00mm x 10.20mm) | - | 0.035" (0.90mm) | - |
|
|
MF-RG600-0PTC RESET FUSE 16V RADIAL DISC |
4,638 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | - | 18.7 A | 100 A | - | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
|
B59980C0120A051PTC RESET FUSE 80V 85MA RADIAL |
2,712 | - |
|
Datasheet | Radial, Disc | B59980 | Tape & Reel (TR) | Active | Ceramic | 80V | 85 mA | 170 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
