PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V0500-BKPTC RESET FUSE 16V 5A RADIAL |
376 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 10 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
PTSLR12066V300PTC RESET FUSE 6V 3A 1206 |
3,947 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
|
PTR016V1500-BKPTC RESET FUSE 16V 15A RADIAL |
190 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
PTS18126V260PTC RESET FUSE 6V 2.6A 1812 |
1,195 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

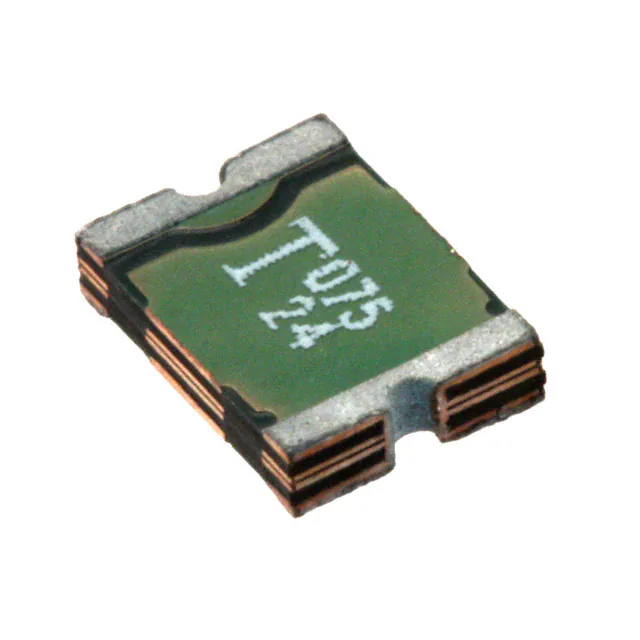

PTS181224V075PTC RESET FUSE 24V 750MA 1812 |
785 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
PTR060V0025-BKPTC RESET FUSE 60V 250MA RADIAL |
855 | - |
|
Datasheet | Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
|
PTSLR12066V260PTC RESET FUSE 6V 2.6A 1206 |
380 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
|
PTR016V0800-BKPTC RESET FUSE 16V 8A RADIAL |
633 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.122" W (12.70mm x 3.10mm) | 0.823" (20.90mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0300-BKPTC RESET FUSE 16V 3A RADIAL |
483 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 98 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.122" W (7.10mm x 3.10mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTSA181224V050PTC RESET FUSE 500MA 24V 1812 |
548 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 500 mA | 1 A | 50 A | 150 ms | 100 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.041" (1.05mm) | - |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
