PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59772B0120A070PTC RESET FUSE 420V RADIAL DISC |
893 | - |
|
Datasheet | Radial, Disc | B59772 | Bulk | Active | Ceramic | 420V | - | 86 mA | 1.4 A | 3 s | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
B59315P1080A062THERMISTOR PTC 25% 4032 |
767 | - |
|
Datasheet | 4032 (1080 Metric) | B59315 | Tape & Reel (TR) | Active | Ceramic | 80V | 80 mA | 165 mA | 1.6 A | - | 9.6 Ohms | 16 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
|
B59955C0120A070PTC RESET FUSE 30V 850MA RADIAL |
1,606 | - |
|
Datasheet | Radial, Disc | B59955 | Bulk | Active | Ceramic | 30V | 850 mA | 1.7 A | 5.5 A | - | - | - | 800 mOhms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59850C0160A070PTC RESET FUSE 160V 250MA RADIAL |
119 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 160V | 250 mA | 500 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59870C0120A051PTC RESET FUSE 265V 100MA RADIAL |
10,321 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59873C0120A051PTC RESET FUSE 265V 70MA RADIAL |
4,000 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

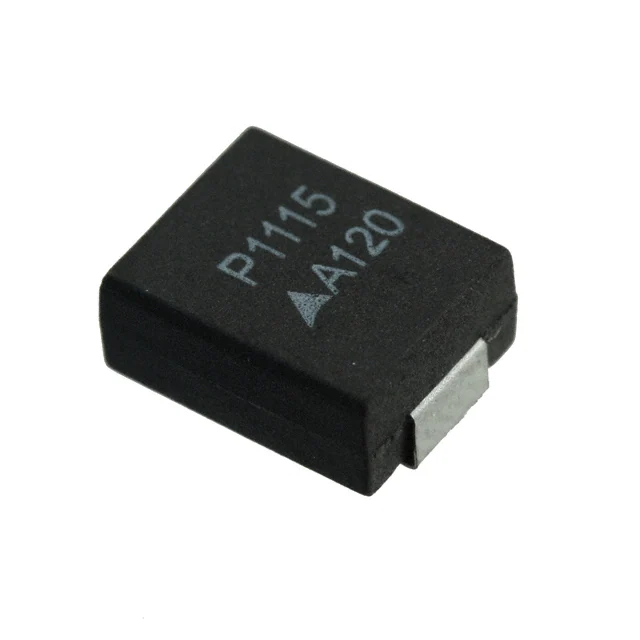

B59115P1120A062PTC RESET FUSE 80V 70MA 3225 |
1,900 | - |
|
Datasheet | 3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 70 mA | 145 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59945C0160A070PTC RESET FUSE 20V 1.5A RADIAL |
2,440 | - |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 20V | 1.5 A | 3.05 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59945C0120A070PTC RESET FUSE 30V 1.3A RADIAL |
1,335 | - |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
B59840C0080A070PTC RESET FUSE 265V 170MA RADIAL |
304 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 170 mA | 350 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
