Pulse Transformers

Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
PA0264NLT PULSE XFMR 1:1:1 1.14MH Pulse Electronics	4,944	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1.14mH	17.2VµS	1:1:1	Surface Mount	0.340" L x 0.265" W (8.64mm x 6.73mm)	0.140" (3.56mm)	-40°C ~ 130°C	-	-

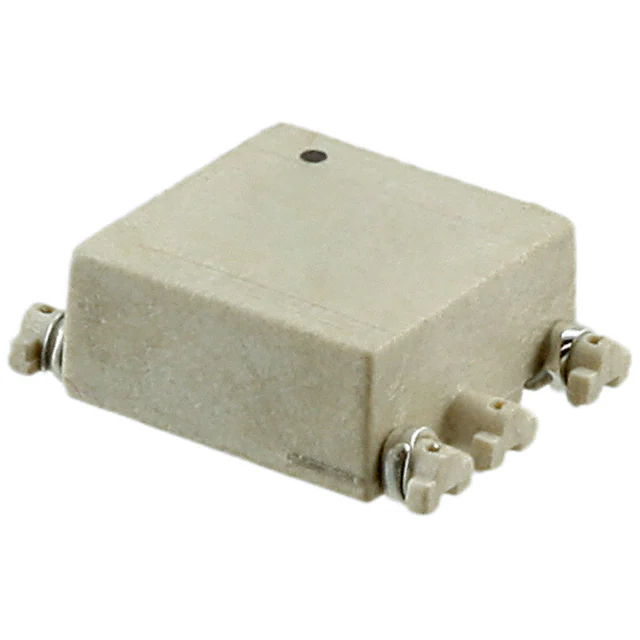

PA0185NL PULSE XFMR 1:1 980UH Pulse Electronics	1,158	-	RFQ	Datasheet	-	Tube	Active	-	980µH	17.2VµS	1:1	Surface Mount	0.340" L x 0.460" W (8.64mm x 11.68mm)	0.160" (4.06mm)	-40°C ~ 130°C	-	-
PA0185NLT PULSE XFMR 1:1 980UH Pulse Electronics	1,243	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	980µH	17.2VµS	1:1	Surface Mount	0.340" L x 0.460" W (8.64mm x 11.68mm)	0.160" (4.06mm)	-40°C ~ 130°C	-	-
SM91525AL-E TRANSFORMER CMC BMS 4.3KVDC Bourns Inc.	3,089	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
LTA1VS16B-351-R TRANSF ETHERNET LAN 350UH Eaton - Electronics Division	657	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.10mm)	0.252" (6.40mm)	-40°C ~ 125°C	Automotive	AEC-Q200
PE-65723NL TRANSFORMER 2000VRMS 75UH SMD Pulse Electronics	551	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	75µH	1.8VµS	1:1	Surface Mount	0.500" L x 0.285" W (12.70mm x 7.24mm)	0.210" (5.33mm)	0°C ~ 70°C	-	-
749010012A WE-LAN 10/100 BASE-T SMT TRANSFO Würth Elektronik	781	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	-	0.500" L x 0.346" W (12.70mm x 8.80mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
P0544NL PULSE XFMR 1:1:1 3.3MH Pulse Electronics	1,452	-	RFQ	Datasheet	-	Tube	Active	-	3.3mH	45.1VµS	1:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PA0184NL PULSE XFMR 1:1 1.2MH Pulse Electronics	944	-	RFQ	Datasheet	-	Tube	Active	-	1.2mH	27.2VµS	1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PM2185.011NLT XFMR GATE-DR 1CT:1CT SM NPB Pulse Electronics	309	-	RFQ	Datasheet	PM2185.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	1CT:1CT	Surface Mount	0.362" L x 0.323" W (9.20mm x 8.20mm)	0.299" (7.60mm)	-40°C ~ 125°C	-	-
PH9572.111ANLT GDT, FUNCTIONAL, EP7, SMT Pulse Electronics	4,324	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	4mH	84.7VµS	1:1:1	Surface Mount	0.402" L x 0.295" W (10.20mm x 7.50mm)	0.433" (11.00mm)	-40°C ~ 125°C	-	-
PA2467NLT PULSE XFMR 37UH Pulse Electronics	1,170	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	37µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PH9572.233ANLT GDT, FUNCTIONAL, EP7, SMT Pulse Electronics	624	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	1.8mH	56.5VµS	-	Surface Mount	0.402" L x 0.295" W (10.20mm x 7.50mm)	0.433" (11.00mm)	-40°C ~ 125°C	-	-

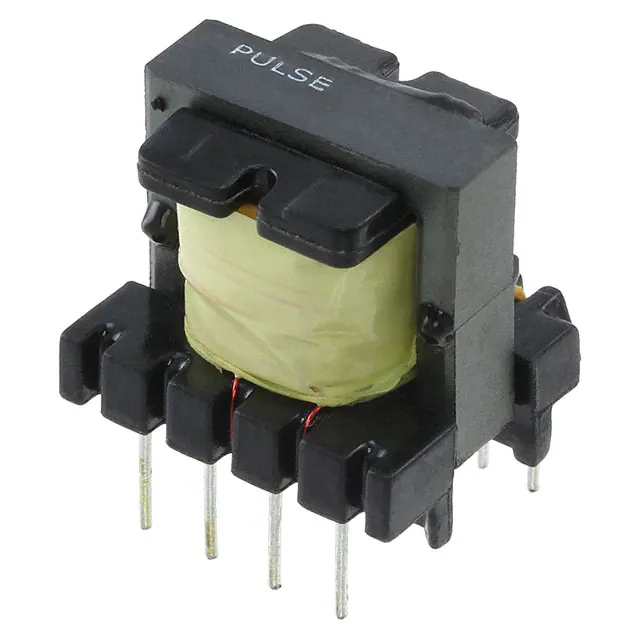

P5009NL PULSE XFMR 1:0.1:0.1 Pulse Electronics	2,400	-	RFQ	Datasheet	-	Tray	Active	-	-	-	1:0.1:0.1	Through Hole	0.717" L x 0.630" W (18.20mm x 16.00mm)	0.697" (17.70mm)	-30°C ~ 110°C	-	-
PH9385.027NLT XFMR PUSH-PULL SIDE CAR 2:7 SMT Pulse Electronics	139	-	RFQ	Datasheet	PH9385	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	-	0.295" (7.50mm)	-	-	-
ISNF-0135-D101 ISNF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	4,778	-	RFQ	Datasheet	IS	Bulk	Active	SCR and Triac Trigger (Encapsulated)	1.1mH	150VµS	1:1:1	Surface Mount	0.512" L x 0.598" W (13.00mm x 15.20mm)	0.433" (11.00mm)	-25°C ~ 100°C	-	-
P0926NL PULSE XFMR 1:1:1 300UH Pulse Electronics	1,380	-	RFQ	Datasheet	-	Tray	Active	-	300µH	23.8VµS	1:1:1	Surface Mount	0.260" L x 0.315" W (6.60mm x 8.00mm)	0.210" (5.33mm)	-40°C ~ 130°C	-	-
PM2190.011NLT XFMR PWR .750 UH EP7 SM NPB Pulse Electronics	739	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	750µH	66VµS	1CT:1CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
PM2190.012NLT XFMR PWR .450 UH EP7 SM NPB Pulse Electronics	848	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	450µH	52VµS	1CT:2CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
HX1260FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,515	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-

Pulse Transformers FAQ

What Pulse Transformers components can I source from EGOO?

You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
