Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3601DGQUAD LAN XFMR 1000 BASE-T |
760 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.307" L x 0.350" W (33.20mm x 8.90mm) | 0.472" (12.00mm) | 0°C ~ 70°C | - | - |
|
G2488CESINGLE LAN XFMR 1000 BASE-T |
395 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.622" L x 0.599" W (15.80mm x 14.20mm) | 0.264" (6.70mm) | -40°C ~ 85°C | - | - |
|
G4802CGDUAL LAN XFMR 1000 BASE-T |
900 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.114" L x 0.500" W (28.30mm x 12.70mm) | 0.295" (7.50mm) | 0°C ~ 70°C | - | - |
|
G2462CESINGLE LAN XFMR 1000 BASE-T |
390 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.733" L x 0.500" W (18.00mm x 12.70mm) | 0.266" (6.80mm) | -40°C ~ 85°C | - | - |
|
H4001CGQUAD LAN XFMR 10/100 BASE-T |
400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.126" L x 0.496" W (28.60mm x 12.60mm) | 0.252" (6.40mm) | 0°C ~ 70°C | - | - |
|
TTER09-0586S1POWER TRANSFORMER |
500 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.5µH | - | 4CT:1CT | Surface Mount | 0.672" L x 0.394" W (17.07mm x 10.00mm) | 0.244" (6.20mm) | -40°C ~ 125°C | - | - |
|
TOEP13-0155S1POE TRANSFORMER |
2,815 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 70µH | - | - | - | 0.669" L x 0.531" W (17.00mm x 13.50mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
GJ2042QLAN XFMR 10/100/1000 BASE-T |
400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.733" L x 0.500" W (18.00mm x 12.70mm) | 0.268" (6.80mm) | 0°C ~ 70°C | - | - |
|

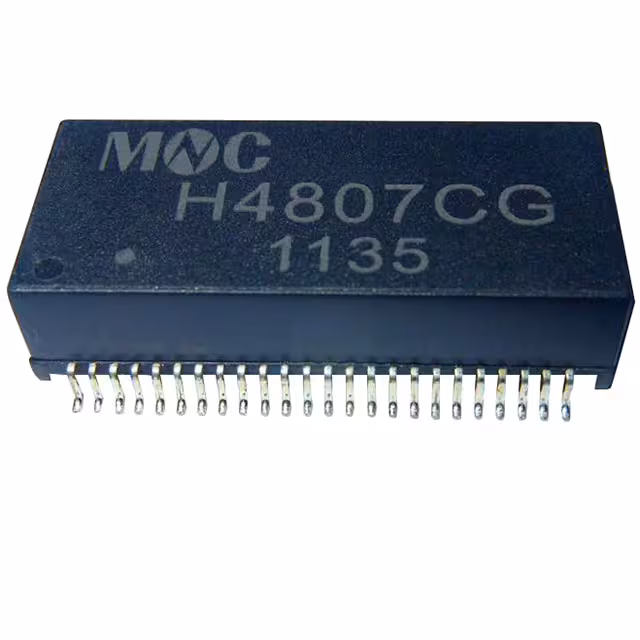

H4807CGQUAD LAN XFMR 10/100 BASE-T |
290 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.114" L x 0.508" W (28.30mm x 12.90mm) | 0.295" (7.50mm) | 0°C ~ 70°C | - | - |
|
|
TOEP13-0284SGPOE TRANSFORMER |
200 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 240µH | - | - | - | 0.705" L x 0.551" W (17.91mm x 14.00mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
