Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALAN110001-4J41DTXFRMR LAN 1CT:1CT 350UH |
4,247 | - |
|
Datasheet | ALAN110001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.610" L x 0.549" W (15.49mm x 13.95mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
ALANS10002-6NA1DTXFRMR LAN 1CT:1CT 350UH SMD |
4,919 | - |
|
Datasheet | ALANS10002 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
ALANS100X1-1E10LTLAN SGL 100B XFMR&CMC 12PIN |
2,765 | - |
|
Datasheet | ALANS100X1-1 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -55°C ~ 125°C | - | - |
|
|
ALANS100X1-1E30LTLAN SGL 100B XFMR&SRDCMC 12PIN |
4,166 | - |
|
Datasheet | ALANS100X1-1 | Cut Tape (CT) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -55°C ~ 125°C | - | - |
|

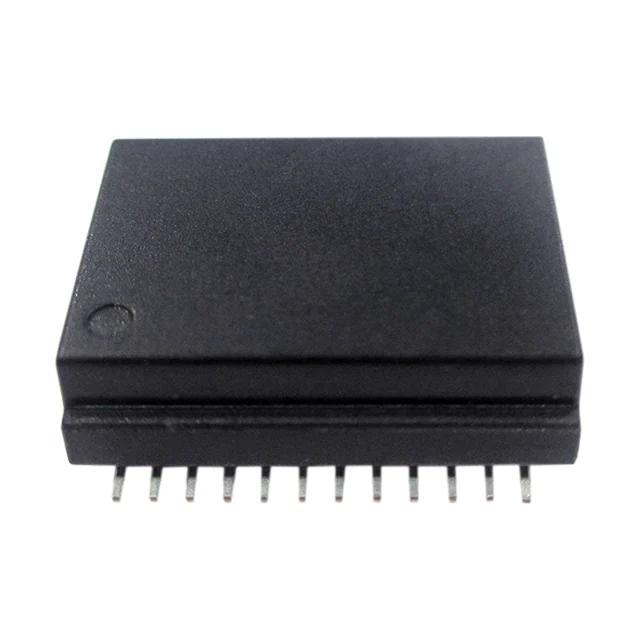

ALAN-1002PULSE XFMR 1CT:1 350UH |
2,828 | - |
|
Datasheet | ALAN-1002 | Strip | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|

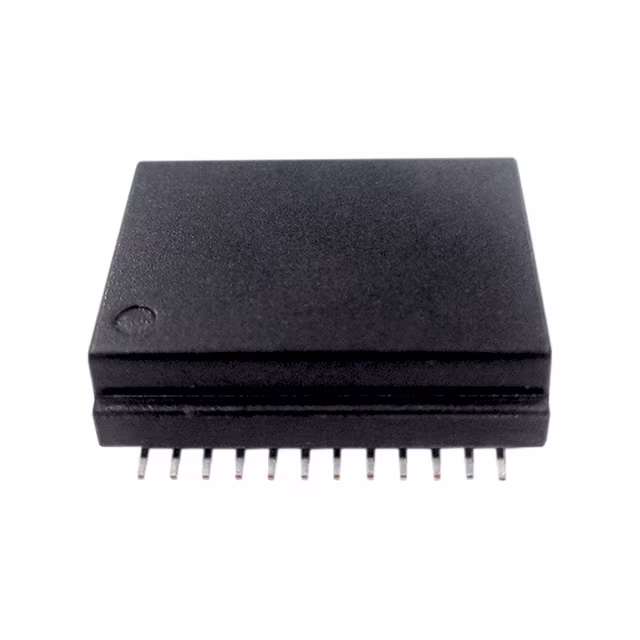

ALAN-2401-TPULSE XFMR 1CT:1CT 120UH |
1,019 | - |
|
Datasheet | ALAN-2401 | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | 0°C ~ 70°C | - | - |
|
ALAN-516-TPULSE XFMR 1CT:1CT 100UH |
4,810 | - |
|
Datasheet | ALAN-516 | Tape & Reel (TR) | Active | LAN 10G Base-T | 100µH | - | 1CT:1CT | Surface Mount | 0.545" L x 0.605" W (13.84mm x 15.37mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
ALAN-101LAN XFRMR 10/100 1PORT EXT-TEMP |
1,542 | - |
|
Datasheet | - | Tube | Discontinued at Digi-Key | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.217" (5.51mm) | -40°C ~ 85°C | - | - |
|

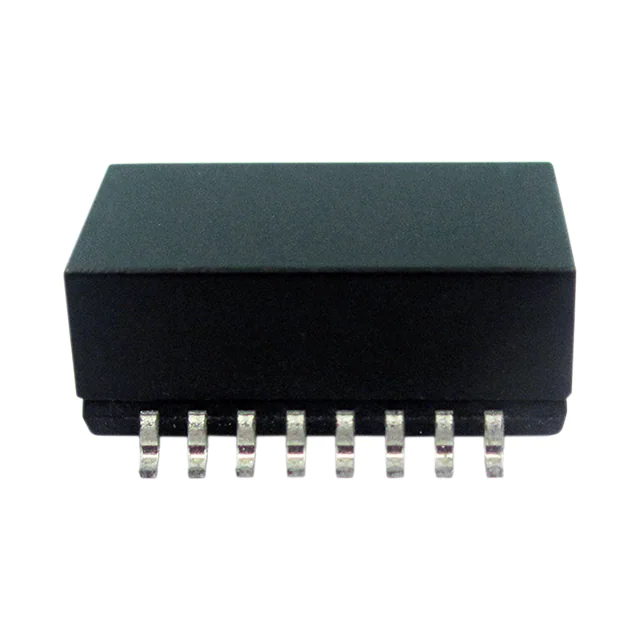

ALAN-134PULSE XFMR 1CT:1CT 350UH |
1,838 | - |
|
Datasheet | ALAN-134 | Strip | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.213" (5.40mm) | -40°C ~ 85°C | - | - |
|
ALAN-2204-TPULSE XFMR 1CT:1CT 350UH |
3,564 | - |
|
Datasheet | ALAN-2204 | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
