Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1200NLMODULE TRANSFRMR DUAL LAN 10/100 |
2,660 | - |
|
Datasheet | - | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

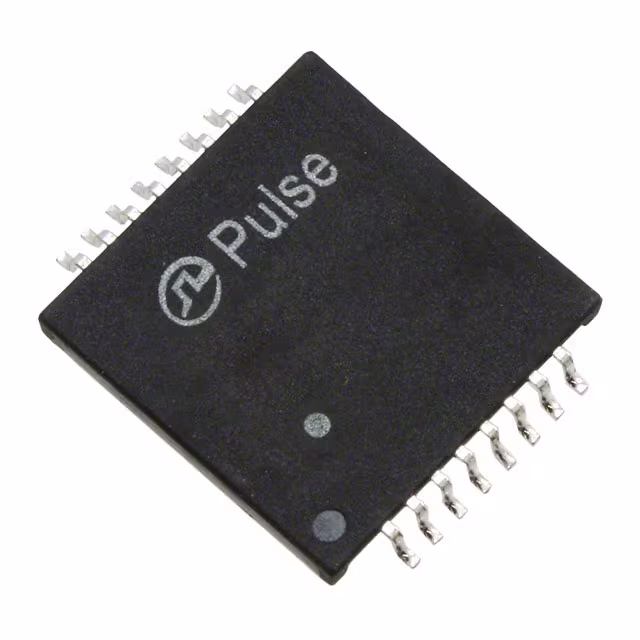

H0009NLMODULE PC CARD SNGL LAN 16PCMCIA |
2,179 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H0019NLMODULE PC CARD SNGL LAN 16PCMCIA |
1,914 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|

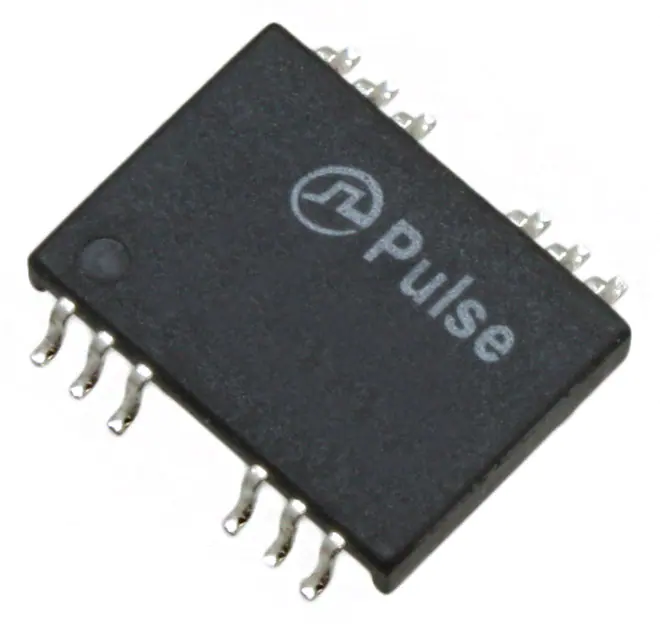

H0022NLMODULE PC CARD SNGL LAN 12PCMCIA |
2,034 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
H1060NLMODULE XFRMR QUAD ETHR LAN40SOIC |
3,427 | - |
|
Datasheet | - | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1174NLMODULE XFRMR DUAL ETHER LAN 24P |
2,036 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.512" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|

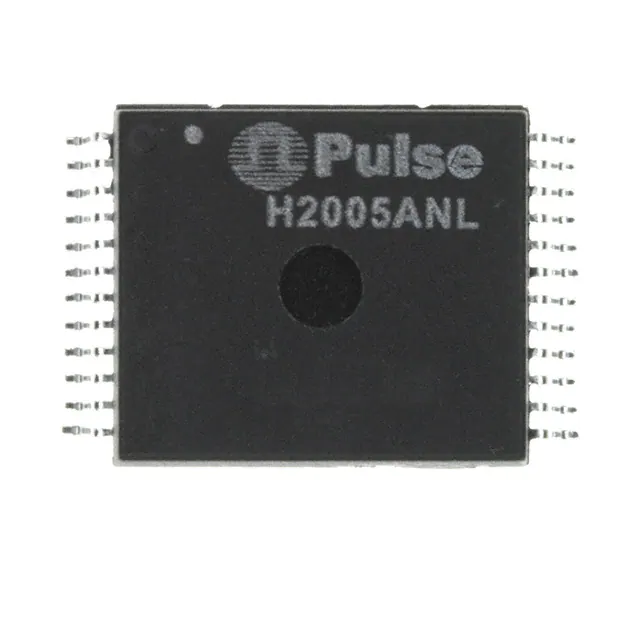

H2005ANLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,898 | - |
|
Datasheet | - | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
|
H2008NLMODULE XFRMR VOIP DL LAN 24-SOIC |
3,381 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
H5012NLMODULE DL GIGABIT ETHER LAN 48P |
3,215 | - |
|
Datasheet | - | Bulk | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA1672NLPULSE XFMR 1:4 7.75UH |
4,930 | - |
|
Datasheet | - | - | Obsolete | - | 7.75µH | - | 1:4 | Surface Mount | 0.930" L x 0.860" W (23.62mm x 21.84mm) | 0.450" (11.43mm) | -40°C ~ 130°C | - | - |
|
FL1012NLMODULE FILTER SNGL LAN 16PIN TH |
2,008 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Through Hole | 0.995" L x 0.395" W (25.28mmx 10.03mm) | 0.338" (8.59mm) | - | - | - |
|
PE-68017SNLMODULE FILTER SNGL LAN 10-SIL |
2,248 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 1.000" L x 0.210" W (25.40mm x 5.33mm) | 0.450" (11.43mm) | - | - | - |
|
H1140NLMODULE XFRMR ETHERNET LAN 40SOIC |
4,220 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
PE-65870NLTRANSFORMER TELECOM DUAL T1/E1 |
1,353 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-68062LNLMODULE XFRMR/CHOKE QUAD 40-SOIC |
1,105 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1.41CT | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
T1091NLTRANSFORMER TELECOM DUAL T1/E2 |
4,466 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX5007NLMODULE SINGLE GIGABIT LAN 24SOIC |
2,017 | - |
|
Datasheet | - | Tube | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

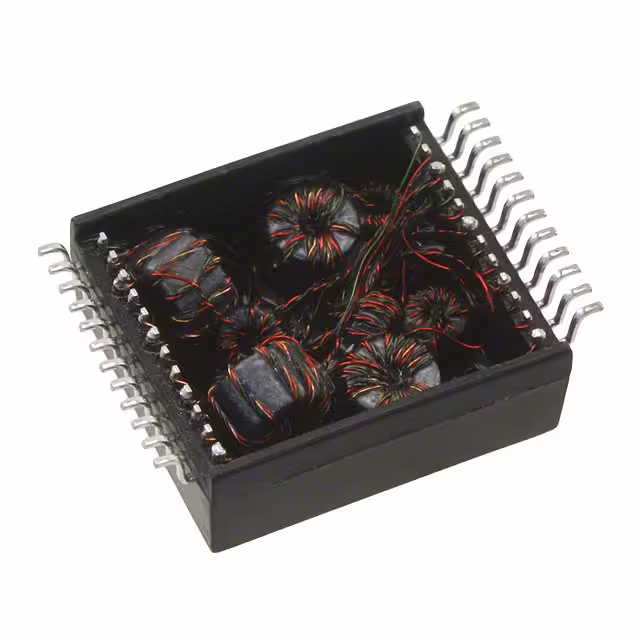

HX5009NLMODULE XFORMR GIGABIT SINGLE LAN |
3,687 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
TX02-4400JIIC INTERFACE TRANSFORMER 8SMD GW |
3,383 | - |
|
Datasheet | TX02-4400 | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 3:1 | Surface Mount | 0.378" L x 0.250" W (9.78mm x 6.35mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
|
|
TX02-4400PIIC INTERFACE TRANSFORMER 8-DIP |
4,856 | - |
|
Datasheet | TX02-4400 | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 3:1 | Through Hole | 0.378" L x 0.255" W (9.59mm x 6.48mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
