Pulse Transformers

Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
T9030NLT PULSE XFMR 1.2MH Pulse Electronics	3,168	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	T1/E1 (Octal)	1.2mH	-	-	Surface Mount	1.255" L x 0.712" W (31.88mm x 18.08mm)	0.305" (7.75mm)	-40°C ~ 85°C	-	-
H1190FNL PULSE XFMR 1CT:1CT 400UH Pulse Electronics	1,662	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	400µH	-	1CT:1CT	Surface Mount	0.300" L x 0.340" W (7.62mm x 8.64mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
H1164FNLT PULSE XFMR 1CT:1CT TX/RX 350UH Pulse Electronics	1,807	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110" L x 0.608" W (28.19mm x 15.44mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
HM1188FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	3,047	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 105°C	-	-
HX1224NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	4,815	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537" L x 0.570" W (13.64mm x 14.48mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

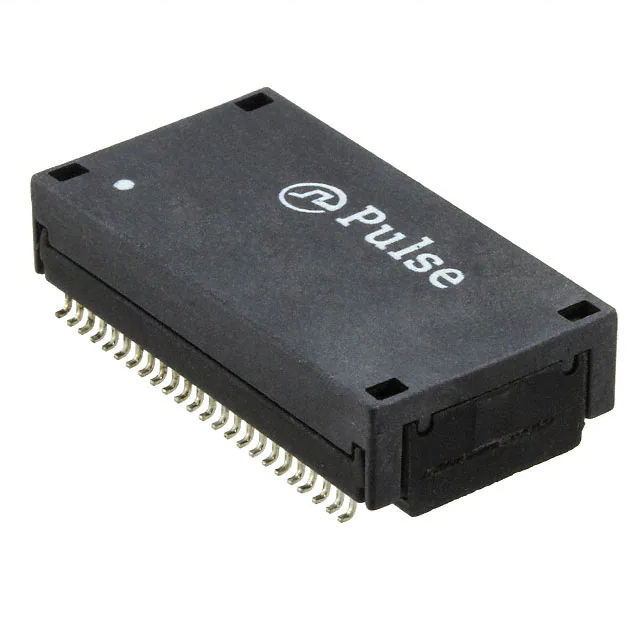

HX5012FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,935	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.590" W (27.81mm x 14.99mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
PA0510NLT PULSE XFMR 2.5:1:1 1.2MH Pulse Electronics	2,231	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1.2mH	27.2VµS	2.5:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PA1366NL PULSE XFMR 10UH Pulse Electronics	4,350	-	RFQ	Datasheet	-	Tray	Active	-	10µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
PA2041NL PULSE XFMR IND CM 10 MH 0.2A 1:1 Pulse Electronics	2,057	-	RFQ	Datasheet	-	Tray	Obsolete	-	-	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-	-	-
PA2070NL PULSE XFMR 164UH Pulse Electronics	4,236	-	RFQ	Datasheet	-	Tray	Active	-	164µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PA2454NL PULSE XFMR 24UH Pulse Electronics	2,007	-	RFQ	Datasheet	-	Tray	Obsolete	-	24µH	-	-	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 130°C	-	-
PH0400NL PULSE XFMR 2.5:1 1.75UH 2.5UH Pulse Electronics	4,331	-	RFQ	Datasheet	-	Tube	Obsolete	-	1.75µH, 2.5µH	-	2.5:1	Surface Mount	0.402" L x 0.295" W (10.20mm x 7.50mm)	0.433" (11.00mm)	-	-	-
TLA-8T102WLF-T TRANSFORMER LAN 10/100/1000 T TDK Corporation	2,633	-	RFQ	Datasheet	TLA	Tape & Reel (TR)	Obsolete	LAN 10/100/1000 Base-T	100µH	-	1CT:1CT, 1CT:1.5CT	Surface Mount	0.457" L x 0.268" W (11.60mm x 6.80mm)	0.232" (5.90mm)	-40°C ~ 95°C	-	-
TLA-8T104WLF-T PULSE XFMR 1 CT:1CT TX/RX 350UH TDK Corporation	3,171	-	RFQ	Datasheet	TLA-8T	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.457" L x 0.256" W (11.60mm x 6.50mm)	0.232" (5.90mm)	-40°C ~ 85°C	-	-
BX4285LNL PULSE XFMR 1.4:1 16MH Pulse Electronics	2,958	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	VDSL	16mH	-	1.4:1	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.388" (9.86mm)	-40°C ~ 85°C	-	-
BX4289LNL PULSE XFMR 1.4:1 100UH Pulse Electronics	4,276	-	RFQ	Datasheet	-	Tray	Obsolete	VDSL	100µH	-	1.4:1	Surface Mount	0.386" L x 0.354" W (9.80mm x 9.00mm)	0.425" (10.80mm)	-40°C ~ 85°C	-	-
C2567NL PULSE XFMR 1:1.7CT Pulse Electronics	3,509	-	RFQ	Datasheet	-	Tray	Obsolete	-	-	-	1:1.7CT	Surface Mount	0.169" L x 0.106" W (4.30mm x 2.70mm)	0.118" (3.00mm)	0°C ~ 70°C	-	-
C2580NL PULSE XFMR 1:1 Pulse Electronics	3,715	-	RFQ	Datasheet	-	Tray	Obsolete	-	-	-	1:1	Surface Mount	0.169" L x 0.106" W (4.30mm x 2.70mm)	0.118" (3.00mm)	0°C ~ 70°C	-	-
PA3855.003NL PULSE XFMR 41UH Pulse Electronics	3,052	-	RFQ	Datasheet	-	Tray	Active	-	41µH	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	-40°C ~ 130°C	-	-
MGPWT-00407-P EP13 XFRMR SMD JL 10 PIN TE Connectivity AMP Connectors	3,112	-	RFQ	Datasheet	*	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-
