Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLA-3T101LFTRANSFORMR LAN 1:1TR 100UH 16SOP |
4,524 | - |
|
Datasheet | TLA | Tray | Active | LAN | 100µH | - | 1:1 | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
TLA-6T211AXFRMR LAN 1CT:1CT 350UH 16SMD |
4,206 | - |
|
Datasheet | TLA | Tray | Active | LAN | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.330" W (12.70mm x 8.37mm) | 0.083" (2.10mm) | 0°C ~ 70°C | - | - |
|
TLA-6T103LFXFRMR FOR QS6611 CHIP SET 16SOP |
4,016 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN | 350µH | - | 1CT:1CT | Surface Mount | 1.012" L x 0.366" W (25.70mm x 9.30mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
TLA-6T118LF-TTRANSFORMER LAN 10/100 TX |
3,340 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
TLA-6T133WLF-TTRANSFORMER LAN 10/100 TX |
3,951 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | -40°C ~ 85°C | - | - |
|
|
TLA-6M103LFINTEGRATED FILTER MODULE 16SOP |
1,713 | - |
|
Datasheet | TLA | Tray | Active | LAN | - | - | - | Surface Mount | 1.012" L x 0.374" W (25.70mm x 9.50mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
|
TLA-6M102LFSURGE PROTECT INTEGRATE FILTER |
4,132 | - |
|
Datasheet | TLA | Tray | Active | LAN | - | - | - | Surface Mount | 1.012" L x 0.374" W (25.70mm x 9.50mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|

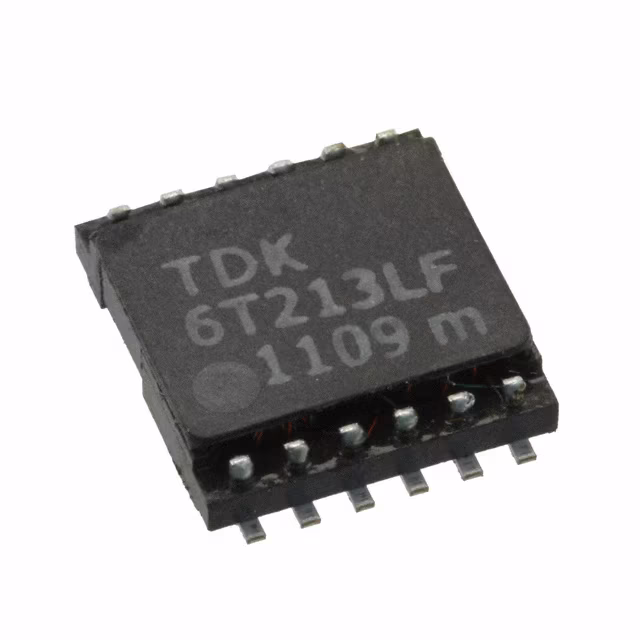

TLA-6T213LF-TTRANSFORMER LAN 10/100/1000 T |
2,239 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.331" L x 0.335" W (8.40mm x 8.50mm) | 0.087" (2.20mm) | 0°C ~ 70°C | - | - |
|
|
TLA-6T127LF-TTRANSFORMER LAN 10/100 TX POE |
3,262 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
TLA-3T107LFXFRMR LAN 1:1.41TR 130UH 16SOP |
3,569 | - |
|
Datasheet | TLA | Tray | Active | LAN | 130µH | - | 1:1.41 | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
