Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78476A8245A003PULSE XFMR 1CT:1CT 350UH |
3,961 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
B78476A8065A003PULSE XFMR 1CT:1CT 350UH |
53,346 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.220" (5.60mm) | -40°C ~ 85°C | - | - |
|
B82804A0354A110PULSE XFMR 1:1 350UH |
11,597 | - |
|
Datasheet | EP5 | Tape & Reel (TR) | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
|
B82804A0264A210PULSE XFMR 1:1:1 264UH |
11,258 | - |
|
Datasheet | EP5 | Tape & Reel (TR) | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
B78416A2232A003SMT TRANSFORMER FOR ULTRASONIC S |
2,130 | - |
|
Datasheet | B7416A | Tape & Reel (TR) | Active | - | 3mH | - | - | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | - | - | - |
|
ICI70CGI-222ISOLATION INDUCTORS 2.2 MH |
2,496 | - |
|
Datasheet | ICI70CGI-222 | Tape & Reel (TR) | Active | - | 2.2mH | - | 1:1 | Surface Mount | 0.280" L x 0.236" W (7.10mm x 6.00mm) | 0.189" (4.80mm) | -40°C ~ 125°C | - | - |
|

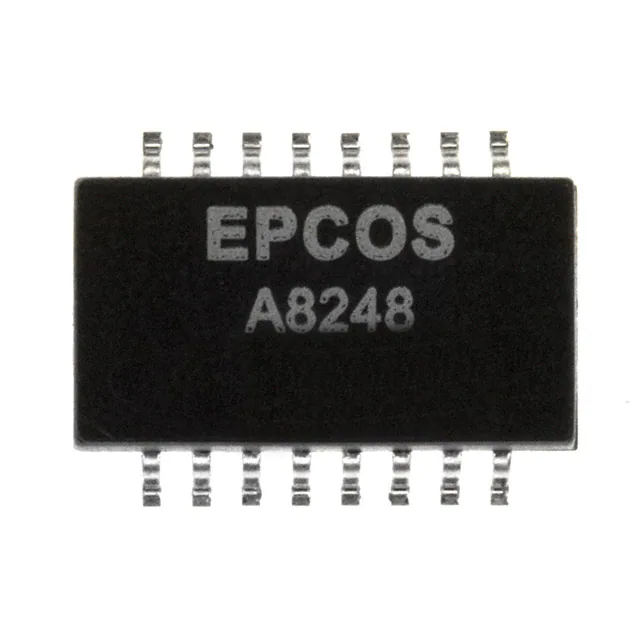

B78476A8248A003PULSE XFMR 1CT:1CT 350UH |
2,779 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|
|
B82804A0324A220PULSE XFMR 2:1:1 317UH |
578 | - |
|
Datasheet | EP5 | Tape & Reel (TR) | Active | Gate Drive | 317µH | 24.5VµS | 2:1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|

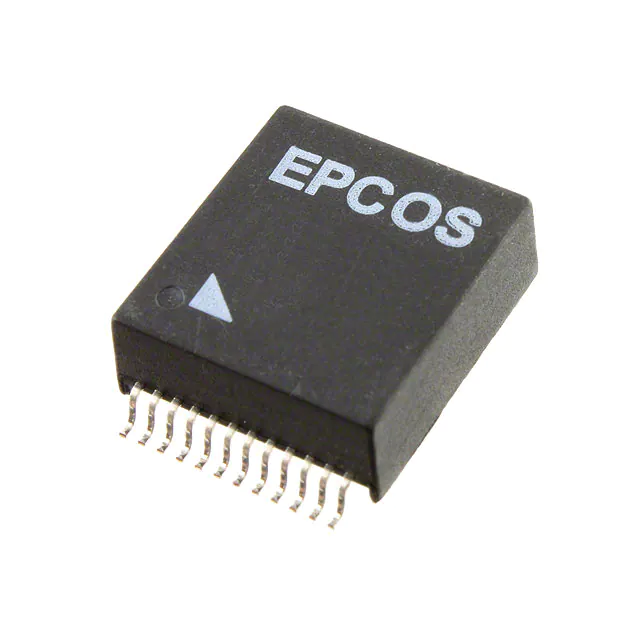

B78476A8135A003PULSE XFMR 1CT:1CT 350UH |
1,599 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.543" L x 0.598" W (13.80mm x 15.20mm) | 0.226" (5.75mm) | -40°C ~ 85°C | - | - |
|

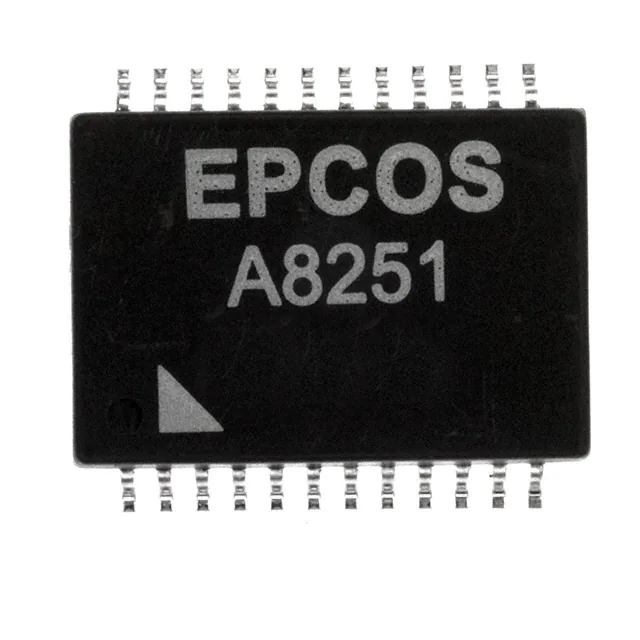

B78476A8251A003PULSE XFMR 1CT:1CT 350UH |
692 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.693" L x 0.476" W (17.60mm x 12.10mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
