Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURF40040RDIODE MODULE GP 400V 200A TO-244 |
3,997 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Anode | Standard | 400 V | 200A | 1.3 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 25 µA @ 400 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-244 |
|
|
MURF40060DIODE MODULE GP 600V 200A TO-244 |
4,824 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 200A | 1.7 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 25 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-244 |
|
|
MURF40060RDIODE MODULE GP 600V 200A TO-244 |
2,128 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Anode | Standard | 600 V | 200A | 1.7 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 25 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-244 |
|
UFT10005DIODE MODULE GP 50V 50A TO-249AB |
2,169 | - |
|
Datasheet | - | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
UFT10010DIODE MODULE GP 100V 50A TO249AB |
2,462 | - |
|
Datasheet | - | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 100 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
UFT10020DIODE MODULE GP 200V 50A TO249AB |
3,805 | - |
|
Datasheet | - | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
UFT14010DIODE MODULE GP 100V 70A TO249AB |
9,636 | - |
|
Datasheet | - | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 100 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
UFT14040DIODE MODULE GP 400V 70A TO249AB |
2,767 | - |
|
Datasheet | - | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 70A | 1.3 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 25 µA @ 400 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|

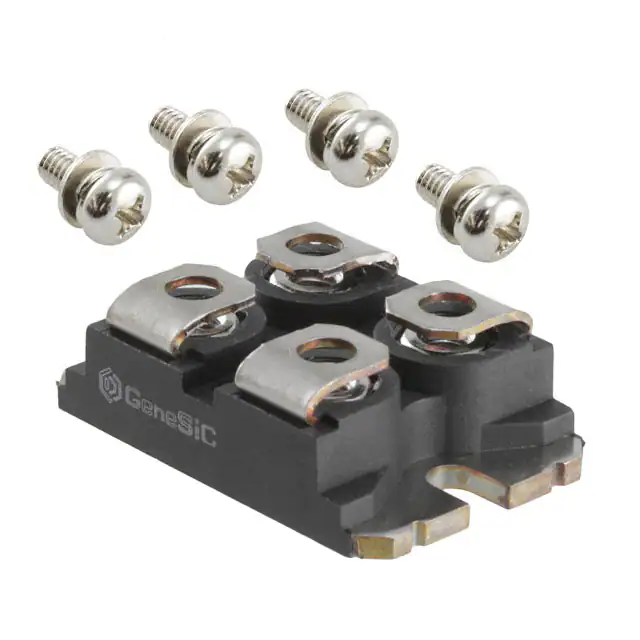

GC2X100MPS06-227DIODE MOD SIC 650V 209A SOT-227 |
8,054 | - |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Discontinued at Digi-Key | 2 Independent | SiC (Silicon Carbide) Schottky | 650 V | 209A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 650 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
