Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAS28E6327HTSA1DIODE ARR GP 80V 200MA SOT1433D |
1,017 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Last Time Buy | 2 Independent | Standard | 80 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | PG-SOT-143-3D |
|
BAV99SH6327XTSA1DIODE ARR GP 80V 200MA SOT36363 |
33,353 | - |
|
Datasheet | - | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | 2 Pair Series Connection | Standard | 80 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 150 nA @ 70 V | 150°C (Max) | - | - | Surface Mount | PG-SOT363-6-3 |
|
|
BAS16SH6327XTSA1DIODE ARR GP 80V 200MA SOT363-PO |
53,445 | - |
|
Datasheet | - | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | 3 Independent | Standard | 80 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 150°C (Max) | - | - | Surface Mount | PG-SOT363-PO |
|
BAS21UE6327HTSA1DIODE ARRAY GP 200V 250MA SC74-6 |
17,484 | - |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Last Time Buy | 3 Independent | Standard | 200 V | 250mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 150°C (Max) | - | - | Surface Mount | PG-SC74-6 |
|
BAV199E6359HTMA1DIODE ARRAY GP 80V 200MA PGSOT23 |
5,707 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 80 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 1.5 µs | 5 nA @ 75 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | PG-SOT23 |
|
|
BAV170E6359HTMA1DIODE ARRAY GP 80V 100MA PGSOT23 |
7,589 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 80 V | 100mA (DC) | 1.1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 1.5 µs | 5 nA @ 75 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | PG-SOT23 |
|
IDW20S120FKSA1DIODE ARR SIC 1200V 10A PGTO2473 |
4,942 | - |
|
Datasheet | CoolSiC™+ | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 10A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | - | 240 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | PG-TO247-3 |
|

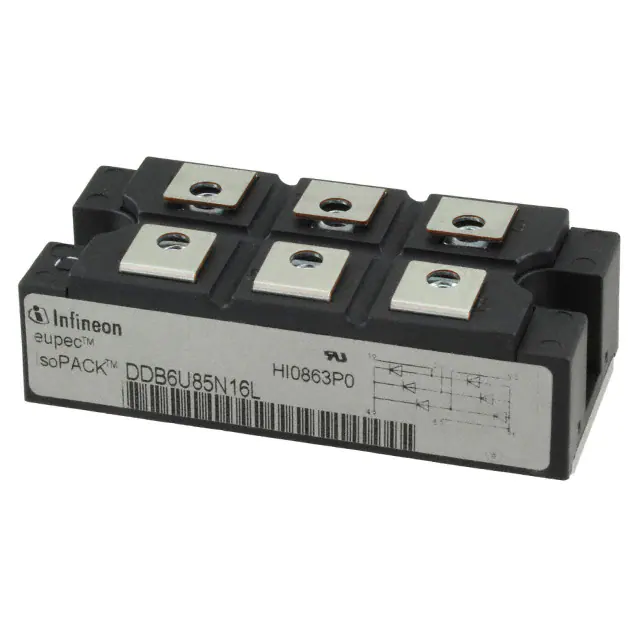

DDB6U85N16LHOSA1DIODE MODULE GP 1600V AGISOPACK1 |
9 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 3 Independent | Standard | 1600 V | 60A | 1.44 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | 150°C (Max) | - | - | Chassis Mount | AG-ISOPACK-1 |
|
DD400S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
9,416 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
|
|
DD800S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
6,254 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
