Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD165A12D2-BPDIODE MODULE GP 1200V 165A D2 |
8,535 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 1200 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|
|
MD165A08D2-BPDIODE MODULE GP 800V 165A D2 |
7,087 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 800 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|
|
MD165A18D2-BPDIODE MODULE GP 1800V 165A D2 |
7,832 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 1800 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|

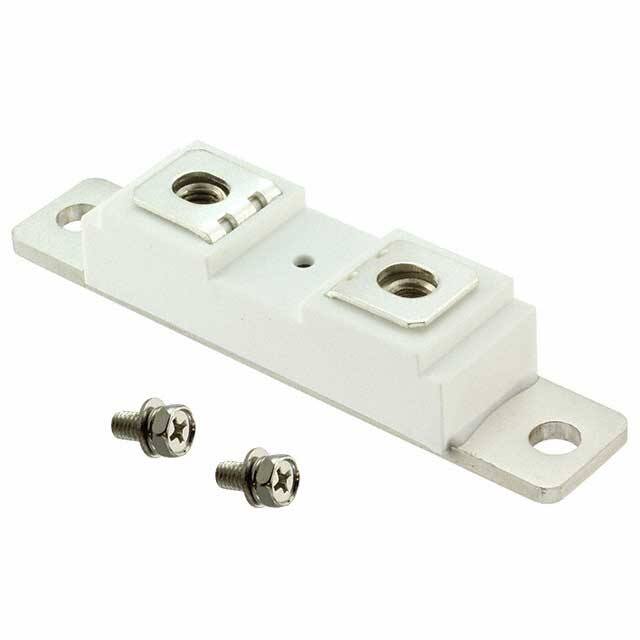

MF200K06F4-BPDIODE MODULE GP 600V 100A F4 |
7,659 | - |
|
Datasheet | - | F4 Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 600 V | 100A | 1.15 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 500 µA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | F4 |
|
|
MBR2520CT-BPDIODE ARR SCHOTT 20V 25A TO220AB |
5,302 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 20 V | 25A | 820 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
MBR1050CT-BPDIODE ARR SCHOTT 50V 10A TO220AB |
6,159 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 10A | - | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 20 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
MBRD1050CT-TPDIODE ARRAY SCHOTT 50V 10A DPAK |
4,892 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 10A | - | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 50 V | -65°C ~ 150°C | - | - | Surface Mount | DPAK |
|
|
BAT54A-TP-HFDIODE ARR SCHOTT 30V 200MA SOT23 |
3,985 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 125°C | - | - | Surface Mount | SOT-23 |
|
|
MBR2530CT-BPDIODE ARR SCHOTT 30V 25A TO220AB |
3,247 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 25A | 820 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
MBRD1260CT-TPDIODE ARRAY SCHOTT 60V 12A DPAK |
2,281 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 12A | 700 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | -55°C ~ 150°C | - | - | Surface Mount | DPAK |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
