Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC2X50SDA170JDIODE MOD SIC 1700V 50A SOT227 |
9,030 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
MSC2X51SDA170JDIODE MOD SIC 1700V 50A SOT227 |
7,802 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
JANTXV1N7047CCT3DIODE ARR SCHOTT 150V 16A TO-257 |
4,058 | - |
|
Datasheet | - | TO-257-3 | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 16A | 1.13 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -65°C ~ 150°C | Military | MIL-PRF-19500/737 | Through Hole | TO-257 |
|
MSCDC100A70D1PAGDIODE MODULE SIC 700V 100A D1P |
9,780 | - |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | SiC (Silicon Carbide) Schottky | 700 V | 100A | 1.8 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 700 V | -40°C ~ 175°C | - | - | Chassis Mount | D1P |
|
JANTX1N6843CCU3/TRDIODE ARRAY SCHOTTKY 100V 15A U3 |
6,278 | - |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
|

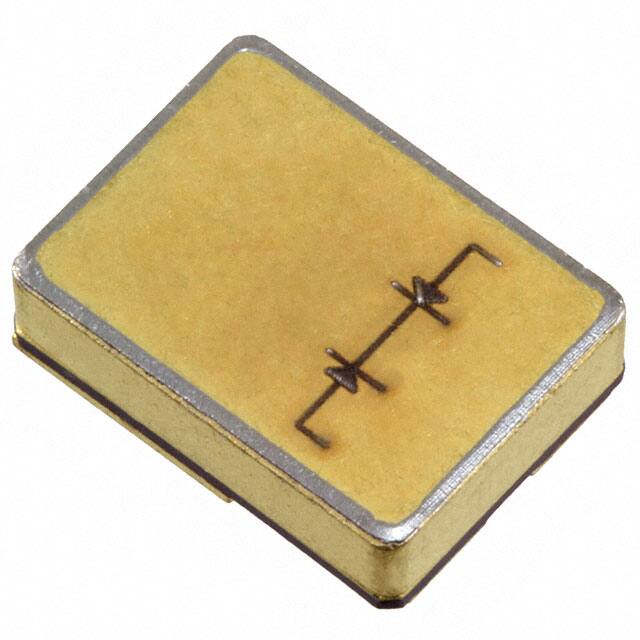

JANTX1N6843CCU3DIODE ARRAY SCHOTTKY 100V 15A U3 |
3,480 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
|
|
1N6843CCU3DIODE ARRAY SCHOTTKY 100V 15A U3 |
8,360 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | - | - | Surface Mount | U3 (SMD-0.5) |
|
|
SD241HR2DIODE ARR SCHOTT 45V 30A TO204AA |
5,767 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 25 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-204AA (TO-3) |
|
|
APTDF400AA60GDIODE MODULE GP 600V 500A SP6 |
9,442 | - |
|
Datasheet | - | LP4 | Bulk | Active | 1 Pair Common Anode | Standard | 600 V | 500A | 2 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 750 µA @ 600 V | - | - | - | Chassis Mount | SP6 |
|
|
APTDF400AK60GDIODE MODULE GP 600V 500A SP6 |
8,352 | - |
|
Datasheet | - | LP4 | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 500A | 2 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 750 µA @ 600 V | - | - | - | Chassis Mount | SP6 |
