Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_418D-01.jpg "NTSB40100CT-1G")
|
NTSB40100CT-1GDIODE ARRAY SCHOT 100V 20A TO262 |
4,313 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 µA @ 70 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
MBR20L45CTGDIODE ARRAY SCHOT 45V 10A TO-220 |
4,236 | - |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 10A | 500 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-220 |
|
|
MBRB30H30CT-1GDIODE ARRAY SCHOTT 30V 15A TO262 |
6,243 | - |
|
Datasheet | SWITCHMODE™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 480 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
|
NTST30100CTGDIODE ARR SCHOTT 100V 15A TO-220 |
8,505 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
NRVHP420MFDWFT1GDIODE ARRAY GP 200V 2A 8DFN |
5,796 | - |
|
Datasheet | SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 2A | 1.1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
MBR41H100CTHDIODE ARR SCHOTT 100V 20A TO-220 |
9,468 | - |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
NTST40H120CTGDIODE ARR SCHOT 120V 20A TO2203 |
39,020 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 910 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 65 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
FYA3010DNTUDIODE ARR SCHOTT 100V 30A TO-3PN |
3,951 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 1.05 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -65°C ~ 150°C | - | - | Through Hole | TO-3PN |
|

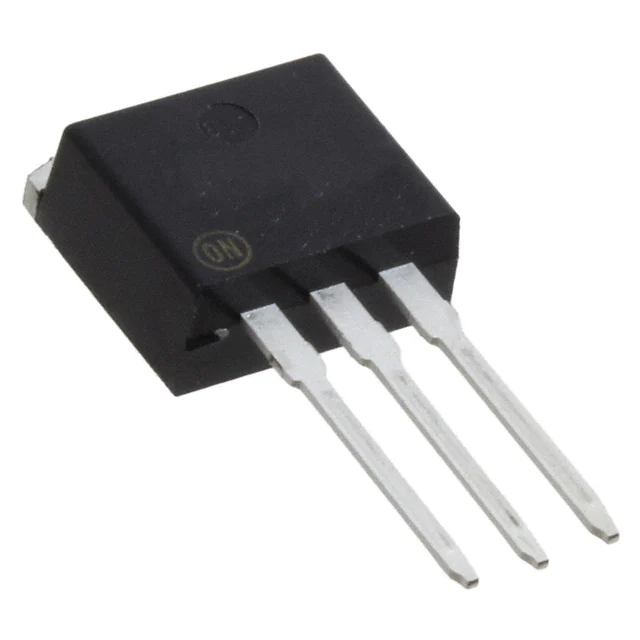

NTSB40120CT-1GDIODE ARRAY SCHOT 120V 20A TO262 |
5,351 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 910 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
SBRD81035CTLGDIODE ARRAY SCHOTTKY 35V 5A DPAK |
4,902 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 5A | 470 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 35 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | DPAK |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
