Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB4X313F0RDIODE ARR SCHOTT 30V 200MA MINI4 |
8,001 | - |
|
Datasheet | - | SC-61AB | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.5 ns | 50 µA @ 30 V | 125°C (Max) | - | - | Surface Mount | Mini4-G4-B |
|
|
DB4X314K0RDIODE ARRAY SCHOT 30V 30MA MINI4 |
7,746 | - |
|
Datasheet | - | SC-61AB | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 30mA (DC) | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 300 nA @ 30 V | 125°C (Max) | - | - | Surface Mount | Mini4-G4-B |
|
MA3J142DGLDIODE ARRAY GP 80V 100MA SMINI3 |
9,440 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|
|
MA3J142EGLDIODE ARRAY GP 80V 100MA SMINI3 |
6,768 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 100 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|

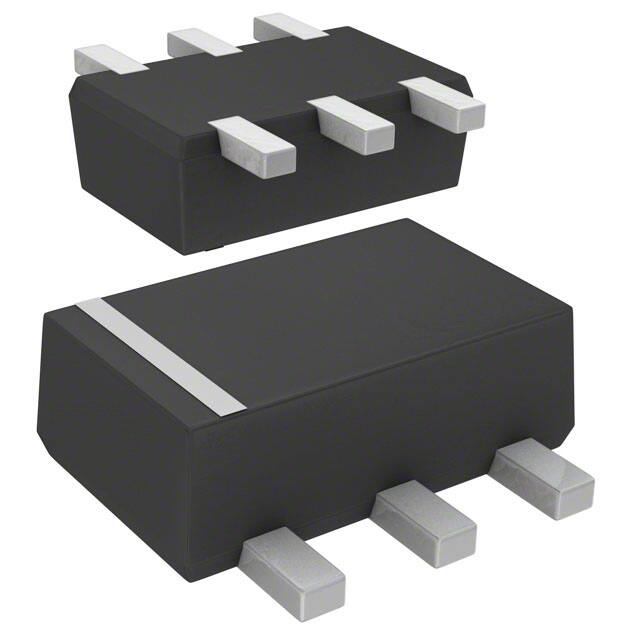

DB6J316K0RDIODE ARR SCHOT 30V 100MA SMINI6 |
3,945 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Discontinued at Digi-Key | 3 Independent | Schottky | 30 V | 100mA | 550 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 800 ps | 15 µA @ 30 V | 125°C (Max) | - | - | Surface Mount | SMini6-F3-B |
|
DA3J102D0LDIODE ARRAY GP 80V 100MA SMINI3 |
7,821 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2-B |
|
DB5S309K0RDIODE ARR SCHOT 30V 100MA SOT665 |
8,502 | - |
|
Datasheet | - | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 100mA | 580 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 1.3 ns | 300 nA @ 10 V | 125°C (Max) | - | - | Surface Mount | SOT-665 |
|
DA4J104K0RDIODE ARRAY GP 80V 200MA SMINI4 |
2,011 | - |
|
Datasheet | - | 4-SMD, Flat Leads | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Standard | 80 V | 200mA (DC) | 1.1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 500 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini4-F3-B |
|
|
MA3J1430GLDIODE ARRAY GP 40V 100MA SMINI3 |
6,551 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 40 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 150 ns | 100 nA @ 40 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|
|
DA3S102D0LDIODE ARRAY GP 80V 100MA SSMINI3 |
6,933 | - |
|
Datasheet | - | SC-89, SOT-490 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SSMini3-F3-B |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
