Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH10LCD06CTDIODE ARRAY GP 600V 5A TO-220 |
7,678 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 5A | 2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH10BC065CTDIODE ARRAY GP 650V 5A TO-220 |
3,414 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 650 V | 5A | 3.2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 2.5 µA @ 650 V | - | - | - | Through Hole | TO-220 |
|
STPS30L30CGDIODE ARRAY SCHOTT 30V 15A D2PAK |
2,311 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 460 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|
|
STTH20LCD06CTDIODE ARRAY GP 600V 10A TO-220 |
8,260 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS40L40CTDIODE ARRAY SCHOT 40V 20A TO-220 |
3,939 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 40 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS4030CTDIODE ARRAY SCHOT 30V 20A TO-220 |
9,666 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 20A | 490 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH20LCD06CG-TRDIODE ARRAY GP 600V 10A D2PAK |
4,938 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Surface Mount | D2PAK |
|
STPS40L45CGDIODE ARRAY SCHOTT 45V 20A D2PAK |
6,848 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|

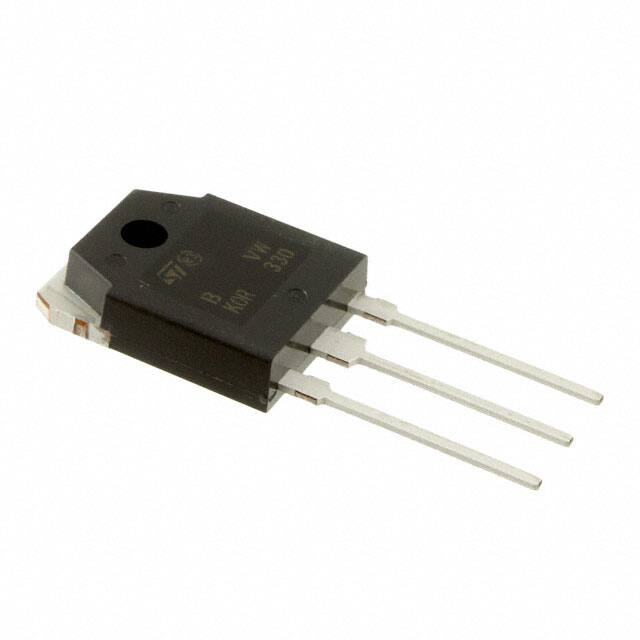

STTH30AC06CPDIODE ARRAY GP 600V 15A TO-3PF |
3,752 | - |
|
Datasheet | - | TO-3PF | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-3PF |
|
STPS40SM80CFPDIODE ARR SCHOTT 80V TO-220FPAB |
9,203 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 80 V | 175°C (Max) | - | - | Through Hole | TO-220FPAB |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
