Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

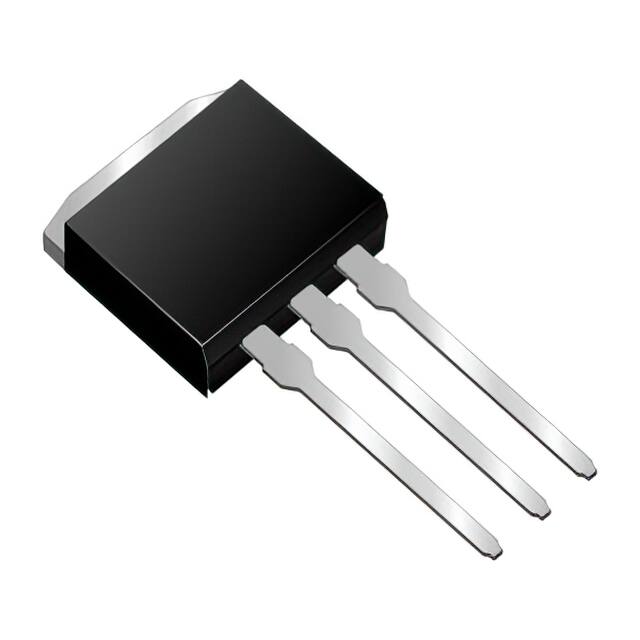

VI60100C-E3/PDIODE ARR SCHOT 100V 30A TO2623 |
4,588 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 790 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-262-3 |
|
VS-20CTQ035S-M3DIODE ARR SCHOTT 35V 10A TO263AB |
2,329 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 35 V | 10A | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 35 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-30CTQ045S-M3DIODE ARR SCHOTT 45V 15A TO263AB |
3,882 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-MBRB4045CT-M3DIODE ARR SCHOTT 45V 20A TO263AB |
2,424 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-30CTQ045STRR-M3DIODE ARR SCHOTT 45V 15A TO263AB |
6,828 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-16CTQ100STRR-M3DIODE ARR SCHOTT 100V 8A TO263AB |
3,140 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
VB20M120C-M3/IDIODE ARR SCHOT 120V 10A TO263AB |
9,216 | - |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 120 V | 10A | 910 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 120 V | -40°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
VS-MBR2045CTHN3DIODE ARR SCHOTT 45V 10A TO2203 |
7,662 | - |
|
Datasheet | - | TO-220-3 | Tube | Last Time Buy | 1 Pair Common Cathode | Schottky | 45 V | 10A | 840 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
|
VS-MBR20100CTKPBFDIODE ARR SCHOT 100V 10A TO2203 |
4,323 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VS-32CTQ030STRR-M3DIODE ARR SCHOTT 30V 15A TO263AB |
4,630 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 15A | 490 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 30 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
