Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-12CWQ06FNTRRHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
7,988 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
VS-MBR3035WTPBFDIODE ARR SCHOTT 35V 15A TO247AC |
8,780 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 15A | 760 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -65°C ~ 150°C | - | - | Through Hole | TO-247AC |

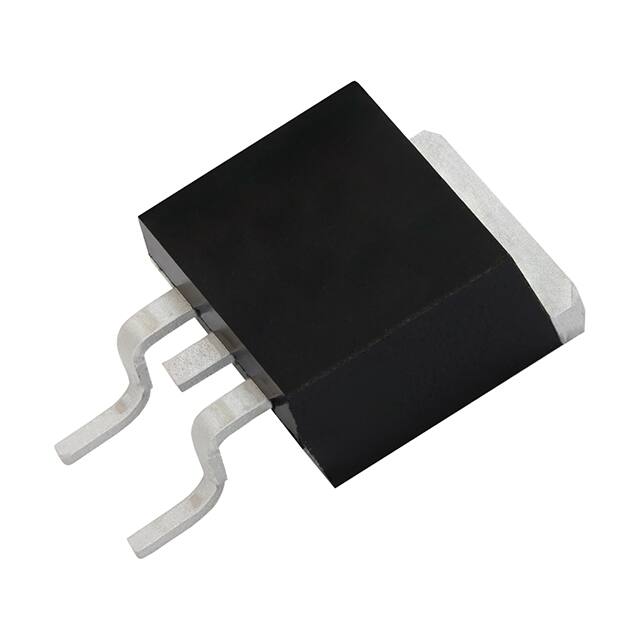

.jpg "VS-25CTQ045SLHM3")
|
VS-25CTQ045SLHM3DIODE ARR SCHOTT 45V 30A TO263AB |
9,937 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
FEPB16FTHE3_A/PDIODE ARRAY GP 300V 8A TO263AB |
5,346 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 300 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16GTHE3_A/PDIODE ARRAY GP 400V 8A TO263AB |
2,919 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16HTHE3_A/PDIODE ARRAY GP 500V 8A TO263AB |
4,556 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 500 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 500 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16JTHE3_A/PDIODE ARRAY GP 600V 8A TO263AB |
4,024 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-MBRB4045CTRHM3DIODE ARR SCHOTT 45V 20A TO263AB |
4,451 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
MURB2020CTDIODE ARRAY GP 200V 10A TO263AB |
8,187 | - |
|
Datasheet | FRED Pt® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 10A | 850 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-30CTQ035STRLHM3DIODE ARR SCHOTT 35V 15A TO263AB |
9,579 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 35 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 35 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
