Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30CTQ050DIODE ARR SCHOTT 50V 15A TO2203 |
8,147 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 50 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|

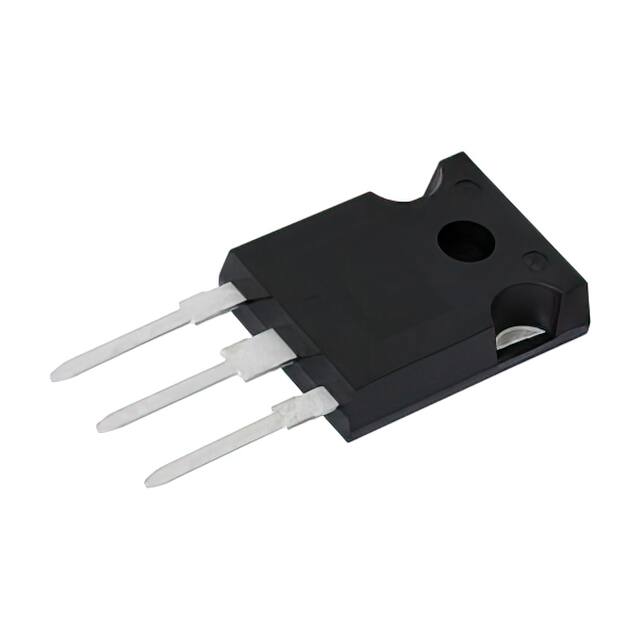

VS-40CPQ060HN3DIODE ARR SCHOTT 60V 40A TO247AC |
7,393 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
MBR20100CT-1DIODE ARR SCHOT 100V 10A TO2623 |
4,439 | - |
|
Datasheet | TMBS® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 150°C | - | - | Through Hole | TO-262-3 |
|
40CTQ045DIODE ARR SCHOTT 45V 20A TO2203 |
4,625 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
VS-30CPQ040PBFDIODE ARR SCHOTT 40V 15A TO247AC |
7,809 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 15A | 540 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 40 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AC |
|
VB20150C-E3/8WDIODE ARR SCHOT 150V 10A TO263AB |
2,423 | - |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
43CTQ100-1DIODE ARR SCHOT 100V 20A TO2623 |
5,753 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-262-3 |
|
VX60202PGWHM3/PDIODE ARR SCHOT 200V 30A TO247AD |
2,663 | - |
|
Datasheet | - | TO-247-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 200 V | 30A | 920 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
|
VBT2045CBP-E3/8WDIODE ARR SCHOTT 45V 10A TO263AB |
2,803 | - |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 580 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 200°C (Max) | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-C5PX3012LHN3DIODE ARRAY GP 1200V 15A TO247AD |
9,725 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 1200 V | 15A | 3.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 77.5 ns | 50 µA @ 1200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
