Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRKD166/12DIODE MOD GP 1200V 165A MOD |
6,954 | - |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | - | - | - | Chassis Mount | Module |
|
|
VS-409CNQ135PBFDIODE MOD SCHOTTKY 135V TO-244AB |
8,151 | - |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 135 V | 400A | 1.46 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | - | - | - | Chassis Mount | TO-244AB |
|
|
VS-401CNQ040PBFDIODE MOD SCHOTT 40V 40A TO244AB |
5,600 | - |
|
Datasheet | - | TO-244AB | Tray | Active | 1 Pair Common Cathode | Schottky | 40 V | 40A | 590 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | 150°C (Max) | - | - | Chassis Mount | TO-244AB |
|
VS-HFA70EA120DIODE MODULE GP 1200V 35A SOT227 |
3,696 | - |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 35A (DC) | 3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 145 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
IRKD166/16DIODE MOD GP 1600V 165A MOD |
5,558 | - |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
|
IRKJ166/16DIODE MOD GP 1600V 165A MOD |
5,827 | - |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
|
IRKC236/04DIODE MODULE GP 400V 230A MODULE |
2,813 | - |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | Module |
|

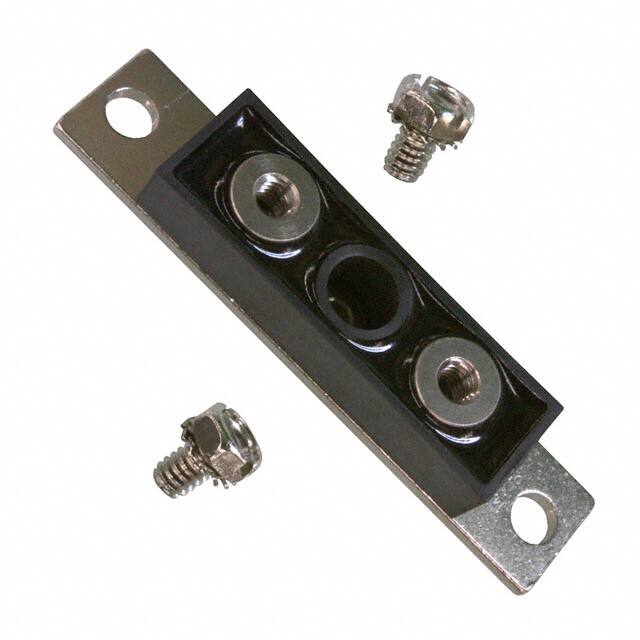

HFA240NJ40DDIODE MOD GP 400V 244A TO244AB |
9,544 | - |
|
Datasheet | HEXFRED® | TO-244AB Isolated Tab | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB (Isolated) |
|
|
HFA240NJ40CDIODE MOD GP 400V 244A TO-244AB |
5,279 | - |
|
Datasheet | HEXFRED® | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|
|
IRKD236/04DIODE MODULE GP 400V 230A MODULE |
7,550 | - |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
