Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V20202C-M3/4WDIODE ARR SCHOT 200V 10A TO2203 |
4,990 | - |
|
Datasheet | TMBS® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 200 V | -40°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
VB60100C-E3/8WDIODE ARR SCHOT 100V 30A TO263AB |
5,928 | - |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 790 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
V30200C-E3/4WDIODE ARR SCHOT 200V 15A TO2203 |
1,752 | - |
|
Datasheet | TMBS® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 15A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 160 µA @ 200 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
|
VS-60CTQ150-M3DIODE ARR SCHOT 150V 30A TO2203 |
1,685 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 1.09 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
VBT6045C-E3/8WDIODE ARR SCHOTT 45V 30A TO263AB |
8,220 | - |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 640 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -40°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
VS-30CPU04-N3DIODE ARRAY GP 400V 15A TO-247AC |
11,547 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 10 µA @ 400 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AC |
|
VX60202PW-M3/PDIODE ARR SCHOT 200V 30A TO247AD |
1,238 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 200 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
|
VS-HFA30PA60C-N3DIODE ARRAY GP 600V 15A TO-247AC |
497 | - |
|
Datasheet | HEXFRED® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.7 V @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AC |
|

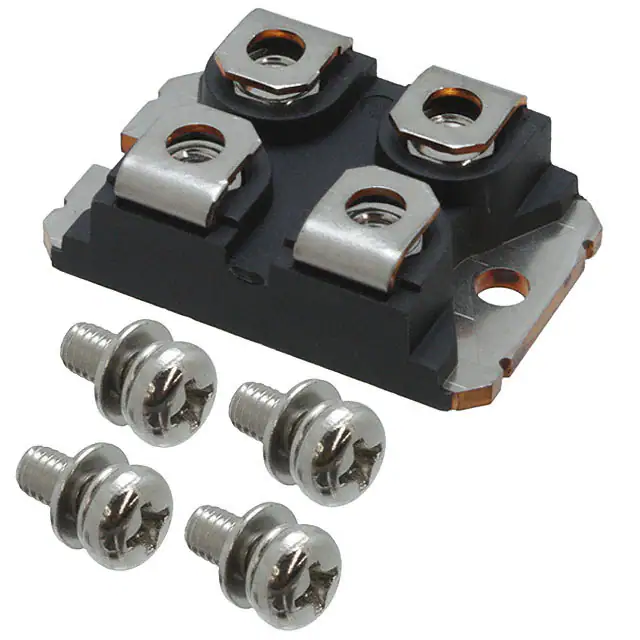

VS-UFB280FA20DIODE MODULE GP 200V 175A SOT227 |
169 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 200 V | 175A (DC) | 1.1 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | SOT-227 |
|

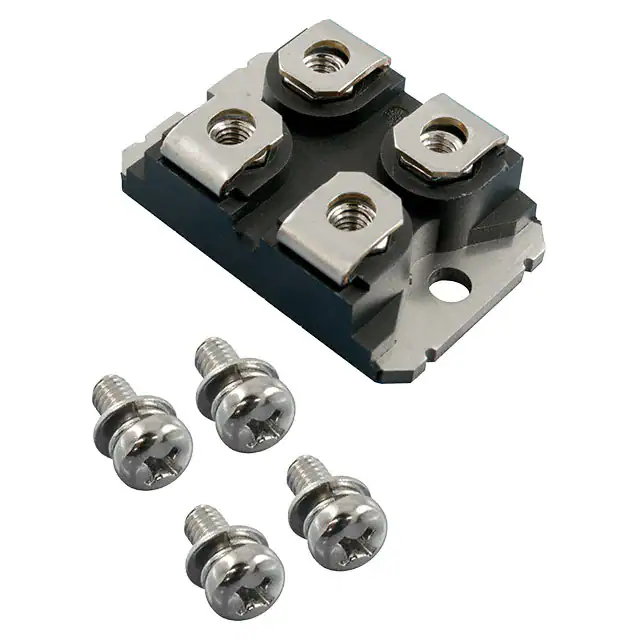

VS-QA250FA20DIODE MOD SCHOT 200V 250A SOT227 |
1,236 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Schottky | 200 V | 250A | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 54 ns | 90 µA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
