Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VT3080CHM3/4WDIODE ARR SCHOTT 80V 15A TO2203 |
4,861 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 15A | 820 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 80 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT4045CHM3/4WDIODE ARR SCHOTT 45V 20A TO2203 |
7,276 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 580 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|

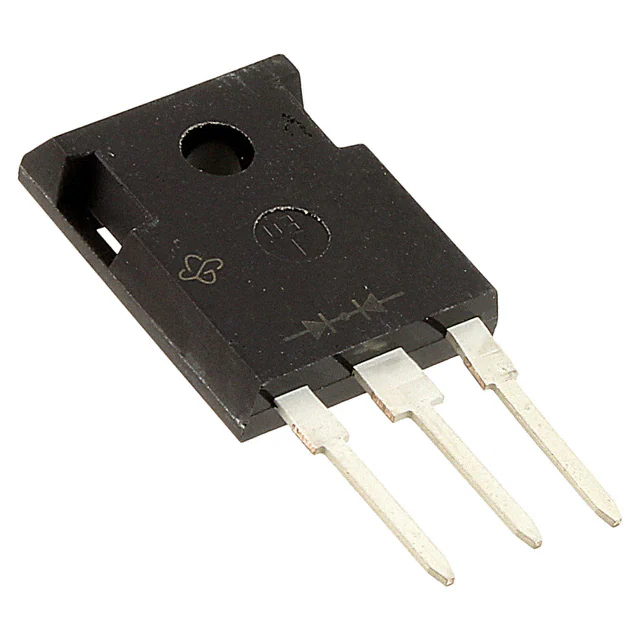

VT80L45PW-M3/4WDIODE ARRAY SCHOT 45V 40A TO-3PW |
3,799 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 9 mA @ 45 V | -40°C ~ 150°C | - | - | Through Hole | TO-3PW |
|
V40M150CHM3/4WDIODE ARR SCHOT 150V 20A TO220AB |
3,673 | - |
|
Datasheet | TMBS® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
V60M120CHM3/4WDIODE ARR SCHOT 120V 30A TO2203 |
2,421 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 30A | 970 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
UH4PDCHM3_A/HDIODE ARRAY GP 200V 2A TO277A |
6,065 | - |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
UH4PDCHM3_A/IDIODE ARRAY GP 200V 2A TO277A |
5,571 | - |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
VS-30CPU04HN3DIODE ARRAY GP 400V 15A TO-247AC |
3,582 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 10 µA @ 400 V | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
VS-CPH3006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
8,933 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
VS-CPH6006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
7,921 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
