Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VF40150C-E3R/4WDIODE ARR SCHOTTKY 150V ITO220AB |
4,100 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|

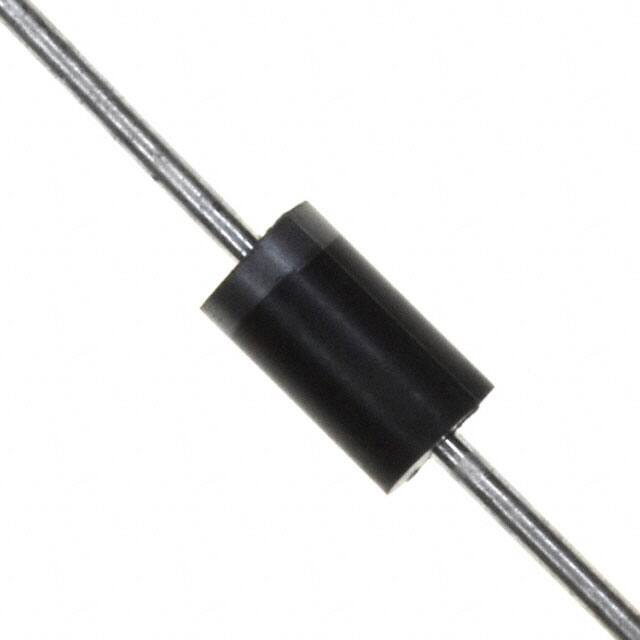

SB360L-5705E3/72DIODE SCHOTTKY |
2,193 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V40120C-E3L/4WDIODE ARR SCHOT 120V 20A TO220AB |
7,072 | - |
|
Datasheet | - | TO-220-3 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
UGB10DCTHE3_A/IDIODE ARRAY GP 200V 5A TO-263AB |
2,187 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB |
|
|
BYQ28EB-200-E3/45DIODE ARRAY GP 200V 5A TO-263AB |
8,294 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB |
|
|
BYT28B-400-E3/45DIODE ARRAY GP 400V 5A TO-263AB |
5,677 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 5A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB |
|
|
BYQ28EB-100-E3/45DIODE ARRAY GP 100V 5A TO-263AB |
9,504 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 5A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 100 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB |
|
|
BYVB32-200HM3/IDIODE ARRAY GP 200V 18A TO263AB |
5,136 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 18A | 1.15 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16DT-M3/IDIODE ARRAY GP 200V 16A TO263AB |
6,392 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 950 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16GT-M3/IDIODE ARRAY GP 400V 16A TO263AB |
6,552 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 400 V | 16A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
