Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-3C40CP07L-M3DIODE ARR SIC 650V 20A TO-247AD |
467 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 20A (DC) | 1.5 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|

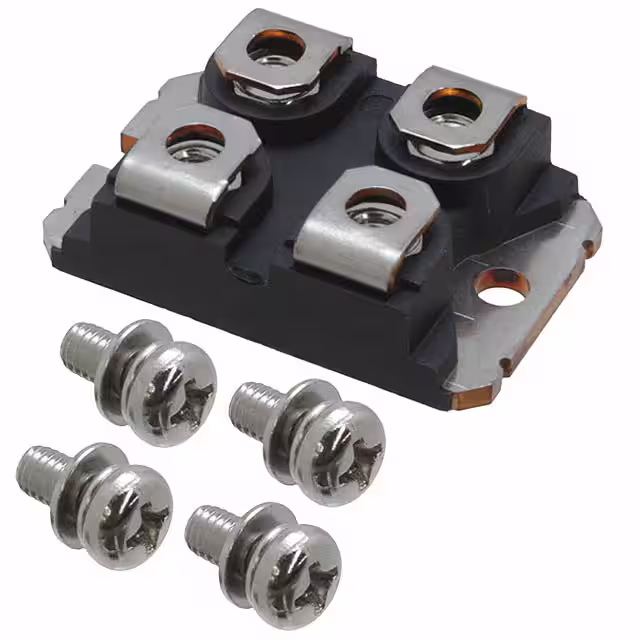

VS-UFB130FA20DIODE MODULE GP 200V 65A SOT-227 |
104 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 200 V | 65A (DC) | 1.13 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | SOT-227 |
|
VS-HFA90FA120DIODE MODULE GP 1200V 45A SOT227 |
159 | - |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Tray | Active | 2 Independent | Standard | 1200 V | 45A (DC) | 3.3 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
BAW56-G3-08DIODE ARRAY GP 70V 250MA SOT23-3 |
10,075 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
MMBD7000-E3-18DIODE ARRAY GP 100V 200MA SOT233 |
8,509 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 100 V | 200mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAV99-G3-18DIODE ARRAY GP 70V 150MA SOT23-3 |
9,975 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 70 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 70 V | - | - | - | Surface Mount | SOT-23-3 |
|
|
BAV70-G3-18DIODE ARRAY GP 70V 250MA SOT23-3 |
9,495 | - |
|
Datasheet | BAV70-G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAT54C-G3-18DIODE ARR SCHOT 30V 200MA SOT233 |
6,298 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
MMBD7000-G3-18DIODE ARRAY GP 100V 100MA SOT233 |
10,000 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 100 V | 100mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAS40-04-G3-18DIODE ARR SCHOT 40V 200MA SOT233 |
9,762 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
