Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VSKD91/16DIODE MOD GP 1600V 50A ADDAPAK |
8 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
VS-VSKCS209/150DIODE MOD SCHOTTKY 150V ADDAPAK |
6 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 1.01 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
|
VS-VSKCS400/045DIODE MOD SCHOT 45V 200A ADDAPAK |
9 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 200A | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
|
VS-VSKCS403/100DIODE MOD SCHOTTKY 100V ADDAPAK |
13 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A | 990 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | - | - | Chassis Mount | ADD-A-PAK® |
|
VS-303CNQ100PBFDIODE MOD SCHOTTKY 100V TO-244AB |
10 | - |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 150A | 1.09 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 100 V | 175°C (Max) | - | - | Chassis Mount | TO-244AB |
|

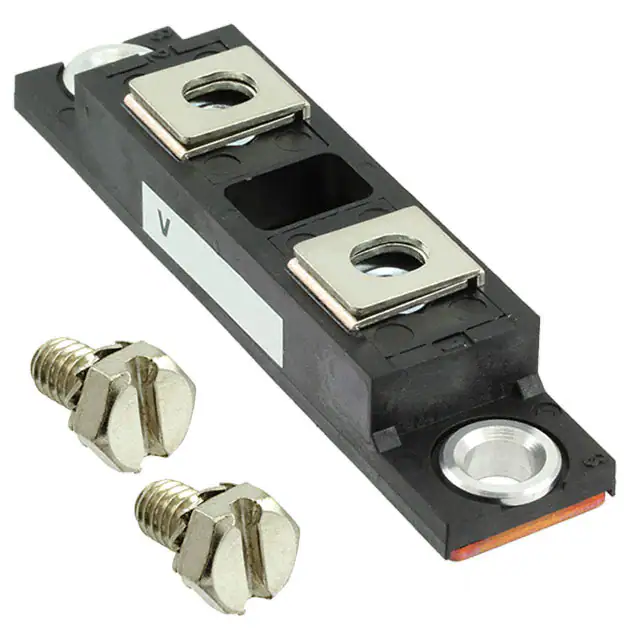

VS-HFA320NJ40CPBFDIODE MOD GP 400V 420A TO-244AB |
9 | - |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Standard | 400 V | 420A | 1.54 V @ 320 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 3 mA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|
|
VS-440CNQ030PBFDIODE MOD SCHOT 30V 220A TO244AB |
12 | - |
|
Datasheet | - | TO-244AB | Tray | Active | 1 Pair Common Cathode | Schottky | 30 V | 220A | 630 mV @ 440 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 30 V | 150°C (Max) | - | - | Chassis Mount | TO-244AB |
|
VS-VSKD236/16PBFDIODE MOD GP 1600V 115A MAGNAPAK |
18 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | MAGN-A-PAK® |
|
V10KM120DUHM3/HDIODE ARR SCHOT 120V 10A FLATPAK |
57 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | 2 Independent | Schottky | 120 V | 10A | 890 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 120 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | FlatPAK 5x6 (Dual) |
|
VS-8CVH02-M3/IDIODE ARRAY GP 200V 4A SLIMDPAK |
236 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 1.14 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 4 µA @ 200 V | -55°C ~ 175°C | - | - | Surface Mount | SlimDPAK |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
