Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6660DIODE ARR SCHOTT 45V 15A TO254AA |
7,747 | - |
|
Datasheet | - | TO-254-3, TO-254AA (Straight Leads) | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 45 V | 15A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-254AA |
|
1N6660CAT1DIODE ARR SCHOTT 45V 15A TO254AA |
7,841 | - |
|
Datasheet | - | TO-254-3, TO-254AA | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-254AA |
|
|
1N6660CCT1DIODE ARR SCHOTT 45V 15A TO254AA |
5,963 | - |
|
Datasheet | - | TO-254-3, TO-254AA | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-254AA |
|
|
JANTXV1N6660CCT1DIODE ARR SCHOTT 45V 15A TO254AA |
8,639 | - |
|
Datasheet | - | TO-254-3, TO-254AA (Straight Leads) | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|

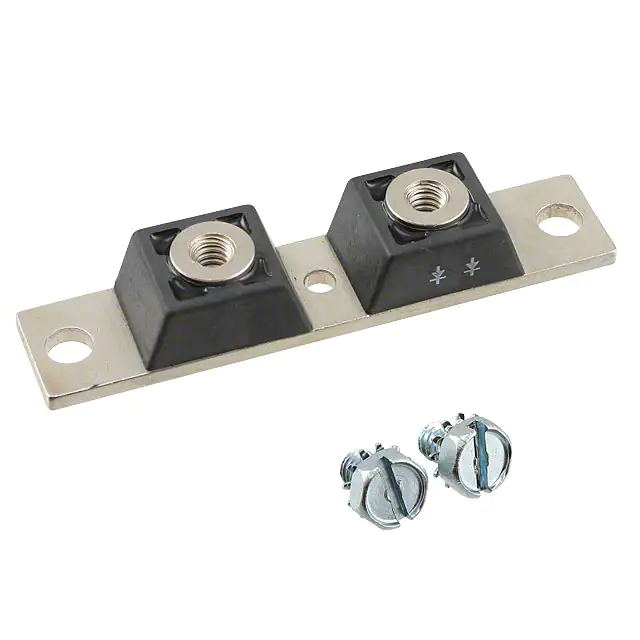

CPT30050DIODE MOD SCHOTT 50V 150A 2TOWER |
6,122 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | - | - | Chassis Mount | Twin Tower |
|

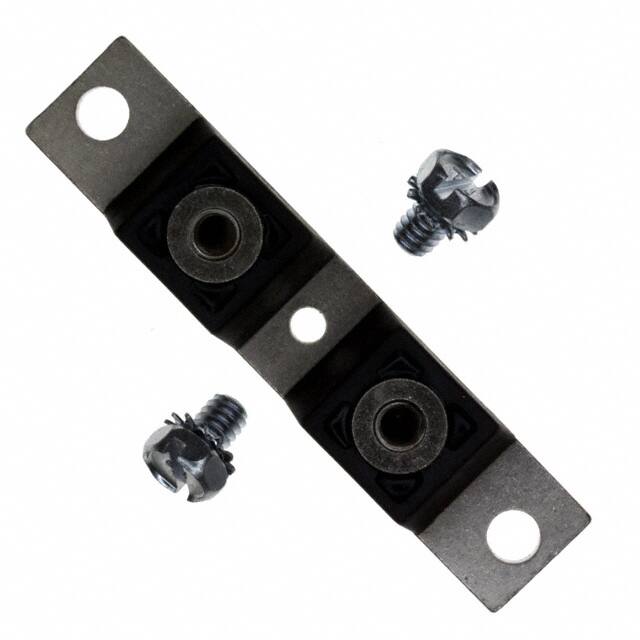

CPT600100DIODE MOD SCHOT 100V 300A 2TOWER |
4,620 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | - | - | Chassis Mount | Twin Tower |
|
APT8DQ60KCTGDIODE ARRAY GP 600V 8A TO220 |
9,864 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 19 ns | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-220 [K] |
|
CPT40145DIODE MOD SCHOTT 45V 200A MD3CC |
6,621 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | - | - | Chassis Mount | MD3CC |
|
APT2X50DC120JDIODE MOD SIC 1200V 50A SOT-227 |
8,873 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
APT2X50DC60JDIODE MOD SIC 600V 50A SOT-227 |
4,427 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
