Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1827RD1200DIODE MODULE GP 1200V 25A MODULE |
4,167 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
F1827CCD600DIODE MODULE GP 600V 25A MODULE |
6,665 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
F1827CCD1600DIODE MODULE GP 1600V 25A MODULE |
2,824 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 1600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
F1827CAD1600DIODE MODULE GP 1600V 25A MODULE |
8,124 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
F1842RD1400DIODE MODULE GP 1400V 40A MODULE |
6,150 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1400 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
F18107RD1600DIODE MODULE GEN PURP 1600V 105A |
4,379 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 105A (DC) | 1.65 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | - |
|
|
F1857CCD1200DIODE MODULE GP 1200V 55A MODULE |
9,447 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Common Cathode | Standard | 1200 V | 55A (DC) | 1.4 V @ 165 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|

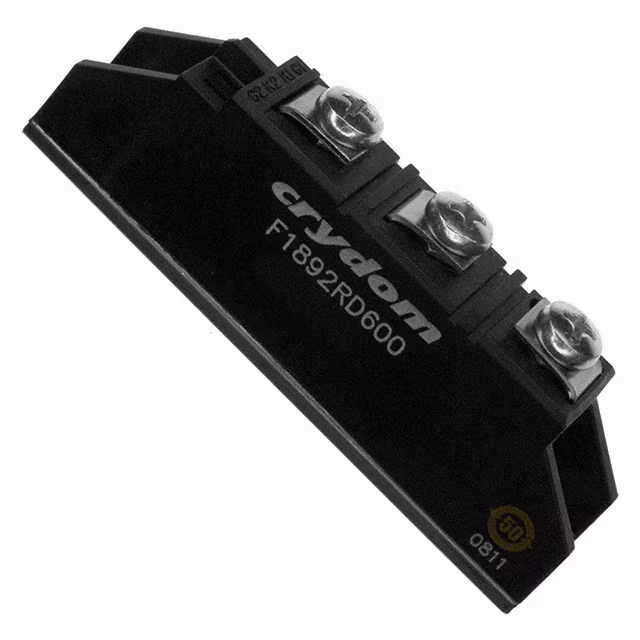

F1892RD600DIODE MODULE GP 600V 90A MODULE |
5,446 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Series Connection | Standard | 600 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
B482C-2TDIODE MODULE GP 600V 35A MODULE |
4,215 | - |
|
Datasheet | B48 | B48 Module | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 35A (DC) | 1.25 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
F1842CAD600DIODE MODULE GP 600V 40A MODULE |
1 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Common Anode | Standard | 600 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
