Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAT54S-7-99-FDIODE ARR SCHOT 30V 200MA SOT233 |
9,393 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 2 µA @ 30 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SDT20120VCTDIODE ARR SCHOT 120V 10A TO220AB |
9,798 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 860 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
SDT30100VCTDIODE ARR SCHOT 100V 15A TO2203 |
3,594 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 720 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|

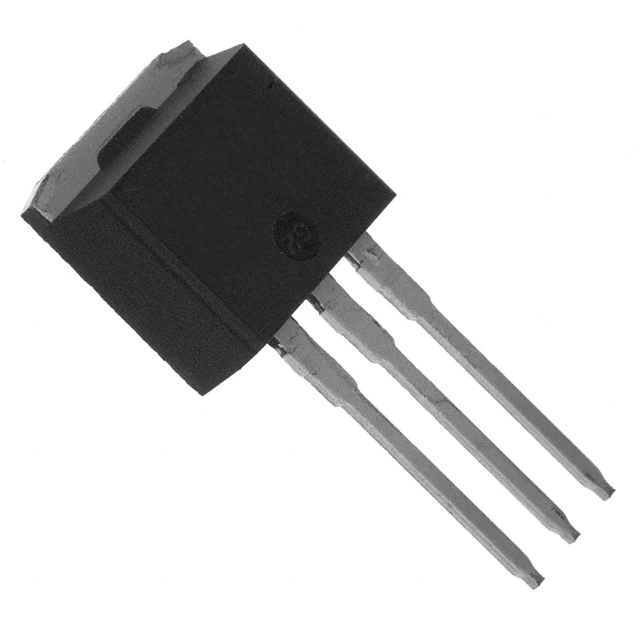

SDT30100CTEDIODE ARR SCHOTT 100V 15A TO-262 |
6,939 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 70 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
SDT40A120CTEDIODE ARR SCHOTT 120V 20A TO-262 |
8,077 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
SDT40A100CTEDIODE ARR SCHOTT 100V 20A TO-262 |
6,810 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
MBRF10200CT-LJDIODE ARR SCHOT 200V 5A ITO220AB |
5,399 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 5A | 910 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
MBRF2060CTDIODE ARRAY SCHOTT 60V ITO220AB |
3,458 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | - | Schottky | 60 V | - | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
SDT20100VCTDIODE SCHOTTKY RECT TO220AB TUBE |
7,040 | - |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BAS16TW-7-GDIODE GEN PURP 75V SOT363 |
7,119 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
